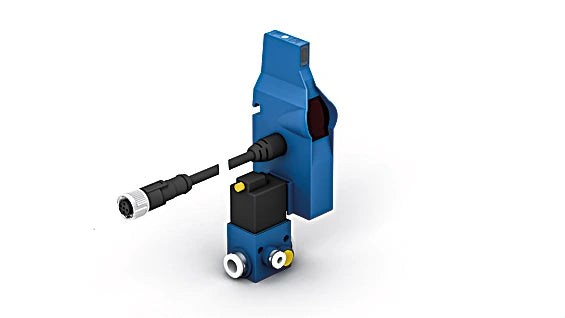

OPT1546 - Compact Logic Unit for Roller Conveyor with NFC Setup

OPT1546 - Compact Logic Unit for Roller Conveyor with NFC Setup

SKU: OPT1546 Download PDF

Variant:
  • OPT1546 - Compact Logic Unit for Roller Conveyor with NFC Setup
Now $2.00
BEFORE   $0.00 Now $2.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a specialized device tailored for accumulation roller conveyors Its space-saving design allows it to fit seamlessly between rollers below the transport level Integrated with its own sensor optics, it efficiently detects objects through externally connected sensor technology Convenient programming is achieved via wireless NFC, even when the device is not powered Thanks to the innovative fast-clip mounting system and rapid wiring process, setup is quick and hassle-free, allowing you to get started in no time.

Features and Benefits:

    •Optimized performance.

    •Energy savings thanks to EcoMode.

    •Increased capacity thanks to intelligent functions.

    •Time-saving initial start-up with fast-clip mounting system and quick wiring.

    •Wireless settings via NFC.

Specifications:

 Service Life (T = +25 °C) 100,000 h
 Supply Voltage 20.6 ... 30 V DC
 Current Consumption Sensor (Ub = 24 V) < 16 mA
 EcoMode yes
 Switching Frequency 100 Hz
 Response Time 5 ms
 Temperature Range -40 ... 60 °C
 Number of Switching Outputs 2
 Switching Output Voltage Drop < 0.9 V
 PNP Switching Output / Switching Current 200 mA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Logic yes
 Single Discharge yes
 Block Forwarding yes
 Solenoid Valve yes
 Automatic Roller Shutdown yes
 Protection Class III
 Setting Method NFC
 Housing Material Plastic, ABS/GF
 Degree of Protection IP65
 Connection M12 × 1; 4-pin
 Cable Length 1 m
 Cable Jacket Material PVC
 Pneumatic Solenoid Valve Unit Valve no. K04
 Supply Voltage Valve 19.2 ... 28.8 V
 Current Consumption Valve 86 mA
 Valve temperature range -15 ... 50 °C
 Operating Pressure 4 ... 7 bar
 Nominal Width 0.8 mm
 Nominal flow rate 1 -> 2 20 NL/min
 Nominal flow rate 2 -> 3 100 NL/min
 Supply-Line Connector Pipe 2× 8×1
 Working-Line Connector Pipe 4×1
 Valve function 3/2-Way
 Switching function NC
 Output PNP NO /NC switchable yes
 NFC Receiver Category yes
