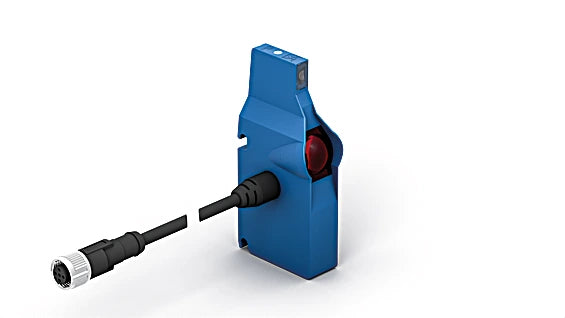

OPT1543 - Compact Reflex Sensor with Background Suppression for Roller Conveyors

OPT1543 - Compact Reflex Sensor with Background Suppression for Roller Conveyors

SKU: OPT1543 Download PDF

Variant:
  • OPT1543 - Compact Reflex Sensor with Background Suppression for Roller Conveyors
Now $289.00
BEFORE   $0.00 Now $289.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the Reflex Sensor with Advanced Background Suppression, expertly crafted for use with accumulation roller conveyors Its compact profile allows for seamless installation between rollers, positioned below the transport level This sensor boasts high-precision background suppression, ensuring reliable detection of even dark objects at distances of up to 900 mm Convenient settings can be adjusted via wireless NFC, even when the sensor is not powered.

Installation is a breeze with the innovative fast-clip mounting system and straightforward wiring process, enabling quick setup and immediate functionality.

Features and Benefits:

    •Optimized performance.

    •Wireless settings via NFC.

    •Increased capacity thanks to intelligent functions.

    •Time-saving initial start-up with fast-clip mounting system and quick wiring.

    •Energy-saving.

    •Designed for use in accumulation roller conveyors.

Specifications:

 Range 900 mm
 Switching Hysteresis < 5 %
 Light Source Infrared Light
 Wavelength 860 nm
 Service Life (T = +25 °C) 100,000 h
 Risk Group (EN 62471) 1
 Max. Ambient Light 90,000 Lux
 Opening Angle 3 °
 Supply Voltage 12 ... 30 V DC
 Current Consumption Sensor (Ub = 24 V) < 16 mA
 Switching Frequency 100 Hz
 Response Time 5 ms
 Temperature Drift < 5 %
 Temperature Range -40 ... 60 °C
 Number of Switching Outputs 2
 Switching Output Voltage Drop < 0.9 V
 PNP Switching Output / Switching Current 200 mA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Logic yes
 Single Discharge yes
 Block Forwarding yes
 Output Magnetic Valve/Engine yes
 Automatic Roller Shutdown yes
 Protection Class III
 Setting Method NFC
 Housing Material Plastic, ABS/GF
 Degree of Protection IP67
 Connection M12 × 1; 4-pin
 Cable Length 1 m
 Cable Jacket Material PVC
 MTTFd (EN ISO 13849-1) 1,091.17 a
 Output PNP NO/NC switchable yes
 NFC Receiver Category yes
