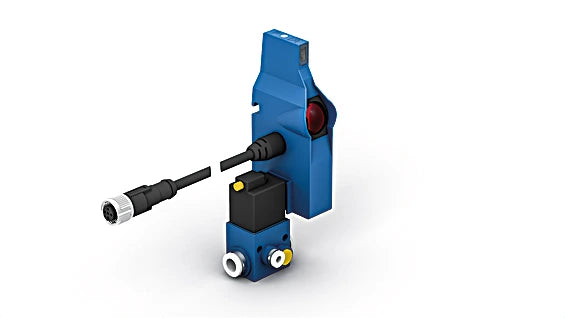

OPT1542 - Compact Reflex Sensor for Rollers, 900mm Detection, NFC Settings

OPT1542 - Compact Reflex Sensor for Rollers, 900mm Detection, NFC Settings

SKU: OPT1542   Download PDF

Select a Variant:
  • OPT1542 - Compact Reflex Sensor for Rollers, 900mm Detection, NFC Settings
Qty:
Now $318.00   Web pricing policy
BEFORE   $0.00 Now $318.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing advanced sensors tailored for accumulation roller conveyors Their space-saving design allows for seamless installation between rollers beneath the transport level Equipped with high-precision background suppression, these sensors can reliably detect even dark objects from distances of up to 900 mm Users can easily configure settings wirelessly through NFC, even when the device is not powered on.

With an innovative fast-clip mounting system and straightforward wiring, these sensors can be installed quickly and put into operation in no time.

Features and Benefits:

    •Optimized performance.

    •Energy savings thanks to EcoMode.

    •Wireless settings via NFC.

    •Increased capacity thanks to intelligent functions.

    •Time-saving initial start-up with fast-clip mounting system and quick wiring.

    •Designed for use in accumulation roller conveyors.

Specifications:

 Range 900 mm
 Switching Hysteresis < 5 %
 Light Source Infrared Light
 Wavelength 860 nm
 Service Life (T = +25 °C) 100,000 h
 Risk Group (EN 62471) 1
 Max. Ambient Light 90,000 Lux
 Opening Angle 3 °
 Supply Voltage 20.6 ... 30 V DC
 Current Consumption Sensor (Ub = 24 V) < 16 mA
 EcoMode yes
 Switching Frequency 100 Hz
 Response Time 5 ms
 Temperature Drift < 5 %
 Temperature Range -40 ... 60 °C
 Number of Switching Outputs 2
 Switching Output Voltage Drop < 0.9 V
 PNP Switching Output / Switching Current 200 mA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Logic yes
 Single Discharge yes
 Block Forwarding yes
 Solenoid Valve yes
 Automatic Roller Shutdown yes
 Protection Class III
 Setting Method NFC
 Housing Material Plastic, ABS/GF
 Degree of Protection IP65
 Connection M12 × 1; 4-pin
 Cable Length 2 m
 Cable Jacket Material PVC
