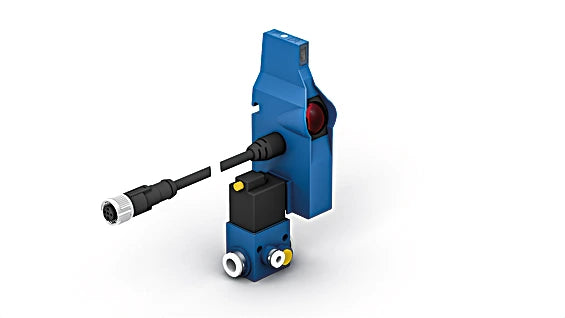

OPT1541 - Compact Reflex Sensor for Roller Conveyors - 900mm Range

OPT1541 - Compact Reflex Sensor for Roller Conveyors - 900mm Range

SKU: OPT1541 Download PDF

Variant:
  • OPT1541 - Compact Reflex Sensor for Roller Conveyors - 900mm Range
Now $312.00
BEFORE   $0.00 Now $312.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing advanced sensors specifically engineered for accumulation roller conveyors Their space-saving design allows for easy placement beneath the transport level, nestled seamlessly between rollers With exceptional background suppression technology, these sensors can accurately detect even black objects from distances of up to 900 mm Convenient settings adjustments are facilitated through wireless NFC, enabling configuration even when the sensor is not powered on.

Installation is a breeze thanks to the innovative fast-clip mounting system and straightforward wiring, allowing you to get the sensors operational in virtually no time.

Features and Benefits:

    •Optimized performance.

    •Energy savings thanks to EcoMode.

    •Wireless settings via NFC.

    •Increased capacity thanks to intelligent functions.

    •Time-saving initial start-up with fast-clip mounting system and quick wiring.

Specifications:

 Range 900 mm
 Switching Hysteresis < 5 %
 Light Source Infrared Light
 Wavelength 860 nm
 Service Life (T = +25 °C) 100,000 h
 Risk Group (EN 62471) 1
 Max. Ambient Light 90,000 Lux
 Opening Angle 3 °
 Supply Voltage 20.6 ... 30 V DC
 Current Consumption Sensor (Ub = 24 V) < 16 mA
 EcoMode yes
 Switching Frequency 100 Hz
 Response Time 5 ms
 Temperature Drift < 5 %
 Temperature Range -40 ... 60 °C
 Number of Switching Outputs 2
 Switching Output Voltage Drop < 0.9 V
 PNP Switching Output / Switching Current 200 mA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Logic yes
 Single Discharge yes
 Block Forwarding yes
 Solenoid Valve yes
 Automatic Roller Shutdown yes
 Protection Class III
 Setting Method NFC
 Housing Material Plastic, ABS/GF
 Degree of Protection IP65
 Connection M12 × 1; 4-pin
 Cable Length 1.5 m
 Cable Jacket Material PVC
 Pneumatic Solenoid Valve Unit {'Valve no.': 'K04', 'Supply Voltage Valve': '19.2 ... 28.8 V', 'Current Consumption Valve': '86 mA', 'Valve temperature range': '-15 ... 50 °C', 'Operating Pressure': '4 ... 7 bar', 'Nominal Width': '0.8 mm', 'Nominal flow rate 1 -> 2': '20 NL/min', 'Nominal flow rate 2 -> 3': '100 NL/min', 'Supply-Line Connector Pipe': '2× 8×1', 'Working-Line Connector Pipe': '4×1', 'Valve function': '3/2-Way', 'Switching function': 'NC', 'Output PNP NO / NC switchable': 'yes', 'NFC Receiver Category': 'yes'}
