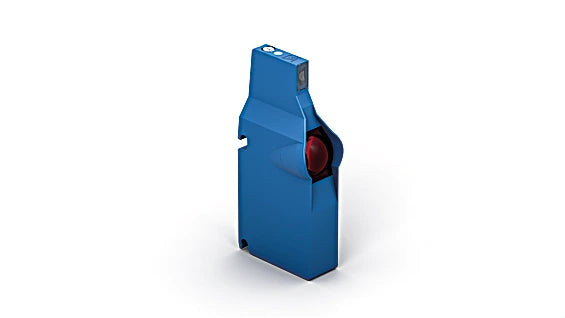

OPT1507 - Compact Reflex Sensor for Roller Conveyors with Adjustable Background Suppression

OPT1507 - Compact Reflex Sensor for Roller Conveyors with Adjustable Background Suppression

SKU: OPT1507   Download PDF

Select a Variant:
  • OPT1507 - Compact Reflex Sensor for Roller Conveyors with Adjustable Background Suppression
Qty:
Now $2.10   Web pricing policy
BEFORE   $0.00 Now $2.10 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing these specially engineered sensors ideal for accumulation roller conveyors Their compact design enables seamless installation between rollers beneath the transport level Equipped with high-precision background suppression, these sensors can reliably detect objects, including black ones, from distances of up to 900 mm Adjusting the switching distance is a breeze with the intuitive scaled adjuster, ensuring you can quickly set it to your preferred level.

Plus, the innovative fast-clip mounting system combined with straightforward wiring means these sensors can be installed and operational in no time at all.

Features and Benefits:

    •Scaled switching distance adjuster.

    •Energy-saving.

    •Optimized performance.

    •Time-saving installation with fast-clip mounting system.

    •Designed for use in accumulation roller conveyors.

Specifications:

 Range 900 mm
 Switching Hysteresis < 5 %
 Light Source Infrared Light
 Wavelength 860 nm
 Service Life (T = +25 °C) 100,000 h
 Risk Group (EN 62471) 1
 Max. Ambient Light 90,000 Lux
 Opening Angle 3 °
 Supply Voltage 12 ... 30 V DC
 Current Consumption Sensor (Ub = 24 V) < 16 mA
 Switching Frequency 100 Hz
 Response Time 5 ms
 Temperature Drift < 5 %
 Temperature Range -40 ... 60 °C
 Number of Switching Outputs 1
 Switching Output Voltage Drop < 0.9 V
 PNP Switching Output / Switching Current 200 mA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Logic no
 Protection Class III
 Setting Method Potentiometer
 Housing Material Plastic, ABS/GF
 Degree of Protection IP67
 Connection M12 × 1; 4-pin
 MTTFd (EN ISO 13849-1) 1,471.92 a
 Output PNP NO yes
