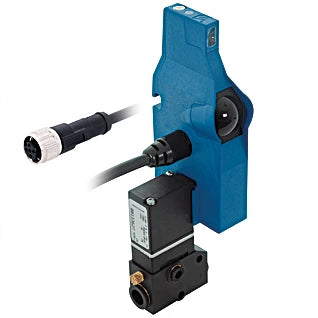

OPT1504 - Compact Reflex Sensor for Roller Conveyors with 900mm Detection

OPT1504 - Compact Reflex Sensor for Roller Conveyors with 900mm Detection

SKU: OPT1504 Download PDF

Variant:
  • OPT1504 - Compact Reflex Sensor for Roller Conveyors with 900mm Detection
Now $262.00
BEFORE   $0.00 Now $262.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Elevate your conveyor system with these specially engineered sensors, perfect for accumulation roller conveyors Their compact structure enables seamless installation beneath the transport level, fitting snugly between rollers With advanced background suppression technology, these sensors can accurately detect dark objects from distances of up to 900 mm The adjustable switching-distance feature allows for quick and easy modifications according to your needs.

Plus, the innovative fast-clip mounting system and straightforward wiring mean you'll have everything set up and operational in no time.

Features and Benefits:

    •Scaled switching distance adjuster.

    •Energy savings thanks to EcoMode.

    •Optimized performance.

    •Quick wiring.

    •Time-saving installation with fast-clip mounting system.

    •Designed for use in accumulation roller conveyors.

Specifications:

 Range 900 mm
 Switching Hysteresis < 5 %
 Light Source Infrared Light
 Wavelength 860 nm
 Service Life (T = +25 °C) 100,000 h
 Risk Group (EN 62471) 1
 Max. Ambient Light 90,000 Lux
 Opening Angle 3 °
 Supply Voltage 23 ... 27.8 V DC
 Current Consumption Sensor (Ub = 24 V) < 16 mA
 EcoMode yes
 Switching Frequency 100 Hz
 Response Time 5 ms
 Temperature Drift < 5 %
 Temperature Range -40 ... 60 °C
 Number of Switching Outputs 1
 Switching Output Voltage Drop < 0.9 V
 PNP Switching Output / Switching Current 200 mA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Logic yes
 Single Discharge yes
 Block Forwarding yes
 Solenoid Valve yes
 Protection Class III
 Setting Method Potentiometer
 Housing Material Plastic, ABS/GF
 Degree of Protection IP65
 Connection M12 × 1; 4-pin
 Cable Length 1.5 m
 Cable Jacket Material PVC
 Valve no. K03
 Supply Voltage Valve 21.6 ... 26.4 V
 Current Consumption Valve 42 mA
 Valve temperature range -10 ... 55 °C
 Operating Pressure 0 ... 8 bar
 Nominal Width 0.9 mm
 Nominal flow rate 1 -> 2 22 NL/min
 Nominal flow rate 2 -> 3 25 NL/min
 Supply-Line Connector Pipe 2× 8×1
 Working-Line Connector Pipe 4×1
 Valve function 3/2-Way
 Switching function NO
 Output PNP NC yes
