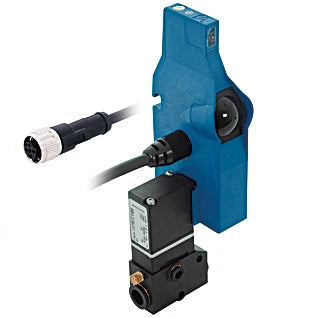

OPT1503 - Compact Reflex Sensor for Roller Conveyors with 900mm Range

OPT1503 - Compact Reflex Sensor for Roller Conveyors with 900mm Range

SKU: OPT1503 Download PDF

Variant:
  • OPT1503 - Compact Reflex Sensor for Roller Conveyors with 900mm Range
Now $254.00
BEFORE   $0.00 Now $254.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Revolutionize your accumulation roller conveyors with the Reflex Sensor featuring Background Suppression Engineered specifically for optimal performance, this compact sensor fits seamlessly between rollers, staying out of sight while providing reliable detection Its advanced background suppression technology ensures effective identification of dark objects from distances of up to 900 mm Easy-to-use scaled switching-distance adjustments allow for rapid setup tailored to your needs.

Thanks to the innovative fast-clip mounting system and straightforward wiring, this sensor can be installed swiftly, enabling quick deployment for your operations.

Features and Benefits:

    •Scaled switching distance adjuster.

    •Energy savings thanks to EcoMode.

    •Time-saving installation with fast-clip mounting system.

    •Quick wiring.

    •Optimized performance.

    •Designed for use in accumulation roller conveyors.

Specifications:

 Range 900 mm
 Switching Hysteresis < 5 %
 Light Source Infrared Light
 Wavelength 860 nm
 Service Life (T = +25 °C) 100,000 h
 Risk Group (EN 62471) 1
 Max. Ambient Light 90,000 Lux
 Opening Angle 3 °
 Supply Voltage 23 ... 27.8 V DC
 Current Consumption Sensor (Ub = 24 V) < 16 mA
 EcoMode yes
 Switching Frequency 100 Hz
 Response Time 5 ms
 Temperature Drift < 5 %
 Temperature Range -40 ... 60 °C
 Number of Switching Outputs 1
 Switching Output Voltage Drop < 0.9 V
 PNP Switching Output / Switching Current 200 mA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Logic yes
 Single Discharge yes
 Block Forwarding yes
 Solenoid Valve yes
 Protection Class III
 Setting Method Potentiometer
 Housing Material Plastic, ABS/GF
 Degree of Protection IP65
 Connection M12 × 1; 4-pin
 Cable Length 1 m
 Cable Jacket Material PVC
 Pneumatic Solenoid Valve Unit Valve no. K03
 Supply Voltage Valve 21.6 ... 26.4 V
 Current Consumption Valve 42 mA
 Valve temperature range -10 ... 55 °C
 Operating Pressure 0 ... 8 bar
 Nominal Width 0.9 mm
 Nominal flow rate 1 -> 2 22 NL/min
 Nominal flow rate 2 -> 3 25 NL/min
 Supply-Line Connector Pipe 2× 8×1
 Working-Line Connector Pipe 4×1
 Valve function 3/2-Way
 Switching function NO
 Output PNP NC yes
