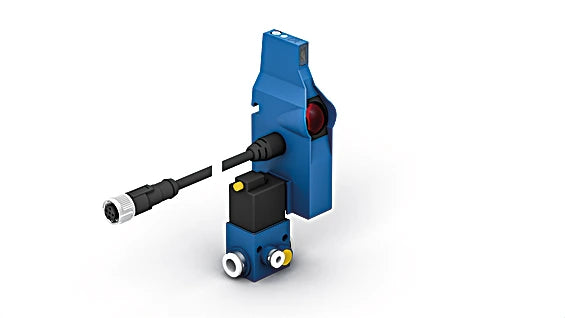

OPT1501 - Compact Reflex Sensor for Roller Conveyors with 900mm Range

SKU: SKU: OPT1501 Download PDF

Variant:

OPT1501 - Compact Reflex Sensor for Roller Conveyors with 900mm Range

Now $254.00

~~BEFORE $0.00~~ Now $254.00

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing these specialized sensors, perfect for integration with accumulation roller conveyors Their compact structure allows for seamless installation between the rollers, tucked away below the transport level Featuring advanced background suppression technology, these sensors can accurately detect even dark objects from distances of up to 900 mm The adjustable switch distance mechanism ensures a straightforward and quick setup tailored to your specific needs.

With an innovative fast-clip mounting system and simplified wiring process, these sensors can be quickly installed and made operational in no time.

Features and Benefits:

•Scaled switching distance adjuster.

•Optimized performance.

•Energy savings thanks to EcoMode.

•Quick wiring.

•Time-saving installation with fast-clip mounting system.

•Accumulative roller conveyors.

Specifications:

Range	900 mm
Switching Hysteresis	< 5 %
Light Source	Infrared Light
Wavelength	860 nm
Service Life (T = +25 °C)	100,000 h
Risk Group (EN 62471)	1
Max. Ambient Light	90,000 Lux
Opening Angle	3 °
Supply Voltage	20.6 ... 30 V DC
Current Consumption Sensor (Ub = 24 V)	< 16 mA
EcoMode	yes
Switching Frequency	100 Hz
Response Time	5 ms
Temperature Drift	< 5 %
Temperature Range	-40 ... 60 °C
Number of Switching Outputs	1
Switching Output Voltage Drop	< 0.9 V
PNP Switching Output/Switching Current	200 mA
Short Circuit Protection	yes
Reverse Polarity Protection	yes
Overload Protection	yes
Logic	yes
Single Discharge	yes
Block Forwarding	yes
Solenoid Valve	yes
Protection Class	III
Setting Method	Potentiometer
Housing Material	Plastic, ABS/GF
Degree of Protection	IP65
Connection	M12 × 1; 4-pin
Cable Length	1.5 m
Cable Jacket Material	PVC
Pneumatic Solenoid Valve Unit	{'Valve no.': 'K04', 'Supply Voltage Valve': '19.2 ... 28.8 V', 'Current Consumption Valve': '86 mA', 'Valve temperature range': '-15 ... 50 °C', 'Operating Pressure': '4 ... 7 bar', 'Nominal Width': '0.8 mm', 'Nominal flow rate 1 -> 2': '20 NL/min', 'Nominal flow rate 2 -> 3': '100 NL/min', 'Supply-Line Connector Pipe': '2× 8×1', 'Working-Line Connector Pipe': '4×1', 'Valve function': '3/2-Way', 'Switching function': 'NC', 'Output PNP NC': 'yes'}
