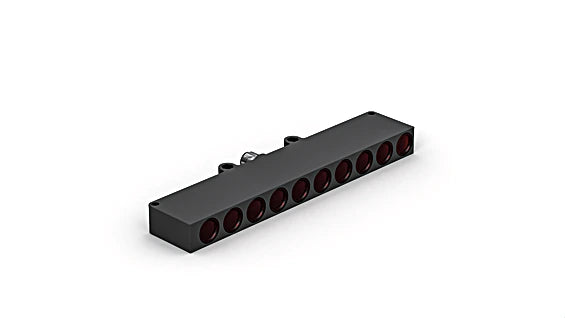

OPT1012 - 10-Sensor Retro-Reflex System for Clear Object Detection

SKU: SKU: OPT1012 Download PDF

Select a Variant:

OPT1012 - 10-Sensor Retro-Reflex System for Clear Object Detection

SET THE QTY:

Now $573.00 Web pricing policy

~~BEFORE $0.00~~ Now $573.00 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

This reflector is essential for the functionality of retro-reflex sensors It features a compact design that houses ten sensors connected in an OR-linked configuration The output activates as soon as any beam of light is interrupted, allowing for the monitoring of an expanded detection area This system efficiently detects even transparent objects, films, and sheet materials with high reliability.

Features and Benefits:

•Stainless steel plug (V2A).

•Single-lens optic.

•External teach-in.

•Red light.

•Recognition of clear glass.

•Service Life (T = +25 °C) 100,000 h.

•Max. Ambient Light 10,000 Lux.

•Switching Output NPN NO.

Specifications:

Range:	4,000 mm
Reference Reflector / Reflector Foil:	3 × RQ100BA
Clear Glass Recognition:	yes
Switching Hysteresis:	< 15 %
Light Source:	Red Light
Polarization Filter:	yes
Supply Voltage:	10 ... 30 V DC
Current Consumption (Ub = 24 V):	< 70 mA
Switching Frequency:	400 Hz
Response Time:	1.25 ms
Temperature Drift:	< 10 %
Temperature Range:	-25 ... 60 °C
Voltage Drop:	< 2.5 V
Switching Current:	200 mA
Residual Current Switching Output:	< 50 µA
Short Circuit Protection:	yes
Reverse Polarity Protection:	yes
Overload Protection:	yes
Protection Class:	III
Setting Method:	Teach-in input
Housing Material:	Plastic, ABS/GF
Full Encapsulation:	yes
Degree of Protection:	IP67
Connection:	M12 × 1; 5-pin
