OLWK503A0091 - Universal Retro-Reflex Sensor for Industrial Detection

OLWK503A0091 - Universal Retro-Reflex Sensor for Industrial Detection

SKU: OLWK503A0091 Download PDF

Variant:
  • OLWK503A0091 - Universal Retro-Reflex Sensor for Industrial Detection
Now $67.80
BEFORE   $0.00 Now $67.80
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

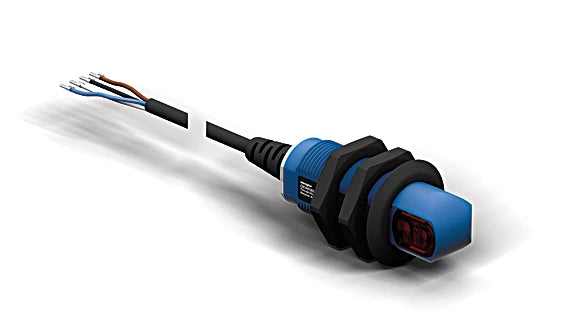

Introducing the Retro-Reflex Sensor Universal, expertly engineered to operate seamlessly with retroflective elements for precise detection These robust sensors are highly versatile, making them suitable for a wide range of industrial settings Thanks to their use of polarized light, they can reliably detect even reflective surfaces, providing exceptional functionality.

Features and Benefits:

    •Switching distance adjuster.

    •Can detect glossy objects.

    •Innovative mounting technology for easy installation.

    •Requires minimal installation space.

Specifications:

 Range 5,000 mm
 Reference Reflector RQ100BA
 Switching Hysteresis < 15 %
 Light Source Red Light
 Polarization Filter yes
 Service Life (T = +25 °C) 100,000 h
 Max. Ambient Light 10,000 Lux
 Opening Angle 5 °
 Two-Lens Optic yes
 Supply Voltage 10 ... 30 V DC
 Current Consumption (Ub = 24 V) < 30 mA
 Switching Frequency 700 Hz
 Response Time 714 µs
 Temperature Drift < 10 %
 Temperature Range -25 ... 60 °C
 Voltage Drop < 2.5 V
 PNP Switching Output 200 mA
 Residual Current Switching Output < 50 µA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Protection Class III
 Setting Method Potentiometer
 Housing Material Plastic, ABS/GF
 Degree of Protection IP67
 Connection Cable; 4-wire
 Cable Length 2 m
 Cable Jacket Material PVC
 MTTFd (EN ISO 13849-1) 2,165.94 a
 Scope of delivery 1 × mounting console
 Packaging unit 1 Piece
 Output PNP NC, PNP NO yes
 Adjustable parameters Circuit NC, NC+NO, NO
