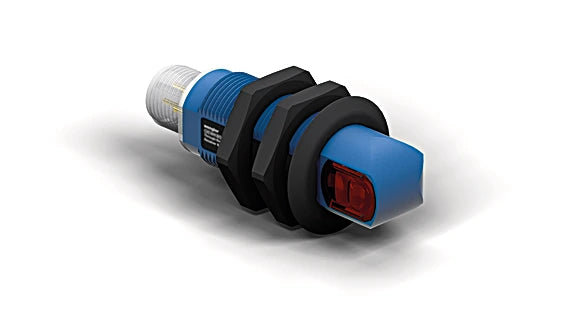

OLWK503A0002 - Polarized Retro-Reflex Sensor for Industrial Applications

SKU: SKU: OLWK503A0002 Download PDF

Select a Variant:

OLWK503A0002 - Polarized Retro-Reflex Sensor for Industrial Applications

SET THE QTY:

Now $67.80 Web pricing policy

~~BEFORE $0.00~~ Now $67.80 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the Retro-Reflex Sensor Universal, engineered for optimal performance when paired with a reflector This versatile sensor is perfect for diverse industrial applications, ensuring a reliable operational capacity Utilizing advanced polarized light technology, it effectively detects even reflective surfaces.

Features and Benefits:

•Switching distance adjuster.

•Glossy objects can be detected.

•Clever inclusive mounting technology.

•Simple installation.

•Minimal installation space.

Specifications:

Switching distance:	5,000 mm
Reference Reflector:	RQ100BA
Switching Hysteresis:	< 15 %
Light Source:	Red Light
Polarization Filter:	yes
Service Life (T = +25 °C):	100,000 h
Max. Ambient Light:	10,000 Lux
Opening Angle:	5 °
Two-Lens Optic:	yes
Supply Voltage:	10 ... 30 V DC
Current Consumption (Ub = 24 V):	< 30 mA
Switching Frequency:	700 Hz
Response Time:	714 µs
Temperature Drift:	< 10 %
Temperature Range:	-25 ... 60 °C
Voltage Drop:	< 2.5 V
Switching Output:	PNP
Switching Current:	200 mA
Residual Current:	< 50 µA
Short Circuit Protection:	yes
Reverse Polarity Protection:	yes
Overload Protection:	yes
Protection Class:	III
Setting Method:	Potentiometer
Housing Material:	Plastic, ABS/GF
Degree of Protection:	IP67
Connection:	M12 × 1; 4-pin
MTTFd (EN ISO 13849-1):	2,165.94 a
