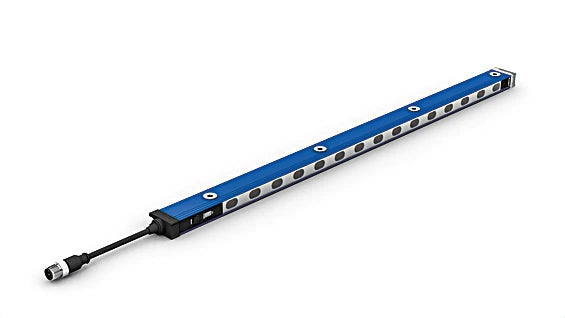

OLEB422C0102 - 360° Light Curtain with Integrated Pick Indicator

OLEB422C0102 - 360° Light Curtain with Integrated Pick Indicator

SKU: SKU: OLEB422C0102 Download PDF

Variant:
  • OLEB422C0102 - 360° Light Curtain with Integrated Pick Indicator
Regular price Now $755.00
Regular price BEFORE   $0.00 Sale price Now $755.00
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the innovative light curtains that operate on the single-lens reflex principle Each unit comes equipped with a reflector mounted at the rear, enhancing the setup by reflecting adjacent light curtains and making installation straightforward Additionally, the job display features a dual-color light that is visible from all angles (360°), clearly indicating whether picks are correct or incorrect.

Features and Benefits:

    •Error prevention during partial picking processes in shelves and storage locations.

    •Low mounting due to integrated reflector.

    •Rugged aluminum housing.

    •360° visible, two-color job display.

Specifications:

 Range 2000 mm
 Min. Distance to Reflector 100 mm
 Measurement Field Height (MFH) 420 mm
 Beam Distance 30 mm
 Switching Hysteresis < 15 %
 Light Source Red Light
 Polarization Filter yes
 Service Life (T = +25 °C) 100,000 h
 Max. Ambient Light 10,000 Lux
 Opening Angle 2.5 °
 Two-Lens Optic yes
 Supply Voltage 10 ... 30 V DC
 Current Consumption (Ub = 24 V) < 70 mA
 Switching Frequency 40 Hz
 Response Time 12 ms
 Temperature Drift < 10 %
 Temperature Range -25 ... 60 °C
 Switching Output Voltage Drop < 2.5 V
 PNP Switching Output / Switching Current 200 mA
 Residual Current Switching Output < 50 µA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Protection Class III
 Setting Method Teach-In
 Display Illuminated cap
 Housing Material Aluminum, powder-coated; Plastic, PC
 Optic Cover Plastic, PMMA
 Degree of Protection IP65
 Connection M12 × 1; 4-pin
 Cable Length 250 mm
 Housing Length (L) 546 mm
 Reflector Length (RL) 486 mm
 Output PNP NO/NC switchable yes
 Adjustable parameters Circuit NC
 NC/NO NO
