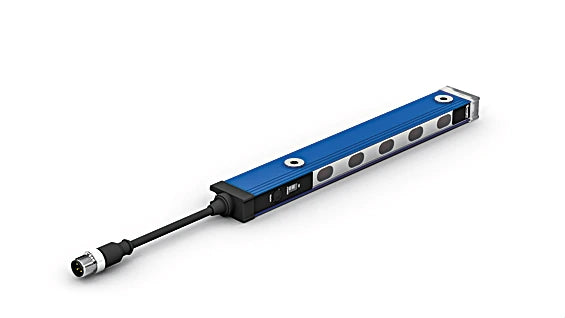

OLEB122C0102 - 360° Light Curtain with Reflector for Easy Installation

OLEB122C0102 - 360° Light Curtain with Reflector for Easy Installation

SKU: SKU: OLEB122C0102 Download PDF

Variant:
  • OLEB122C0102 - 360° Light Curtain with Reflector for Easy Installation
Regular price Now $517.00
Regular price BEFORE   $0.00 Sale price Now $517.00
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience seamless accuracy with our light curtains, which function based on the single-lens reflex principle Featuring a built-in reflector at the back for easy setup alongside other light curtains, installation has never been simpler The dual-colored indicator lights are visible from all angles, providing clear signals for correct and incorrect selections This solution reduces errors during partial picking in storage spaces and is designed for low-profile mounting due to its integrated reflector.

Crafted from durable aluminum, this product promises long-lasting performance.

Features and Benefits:

    •Error prevention during partial picking processes in shelves and storage locations.

    •Low mounting due to integrated reflector.

    •Rugged aluminum housing.

    •360° visible, two-color job display.

Specifications:

 Range 2000 mm
 Min. Distance to Reflector 100 mm
 Measurement Field Height (MFH) 120 mm
 Beam Distance 30 mm
 Switching Hysteresis < 15 %
 Light Source Red Light
 Polarization Filter yes
 Service Life (T = +25 °C) 100,000 h
 Max. Ambient Light 10,000 Lux
 Opening Angle 2.5 °
 Two-Lens Optic yes
 Supply Voltage 10 ... 30 V DC
 Current Consumption (Ub = 24 V) < 50 mA
 Switching Frequency 120 Hz
 Response Time 4 ms
 Temperature Drift < 10 %
 Temperature Range -25 ... 60 °C
 Switching Output Voltage Drop < 2.5 V
 PNP Switching Output / Switching Current 200 mA
 Residual Current Switching Output < 50 µA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Protection Class III
 Setting Method Teach-In
 Display Illuminated cap
 Housing Material Aluminum, powder-coated; Plastic, PC
 Optic Cover Plastic, PMMA
 Degree of Protection IP65
 Connection M12 × 1; 4-pin
 Cable Length 250 mm
 Housing Length (L) 246 mm
 Reflector Length (RL) 162 mm
 Output PNP NO yes
 Adjustable parameters Circuit NC
 NC/NO NO
