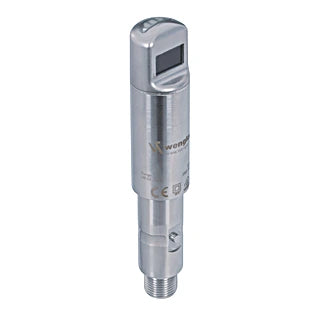

OKII403C0103 - FDA Compliant Hygienic Sensor with Stainless Steel Housing

OKII403C0103 - FDA Compliant Hygienic Sensor with Stainless Steel Housing

SKU: OKII403C0103   Download PDF

Select a Variant:
  • OKII403C0103 - FDA Compliant Hygienic Sensor with Stainless Steel Housing
Qty:
Now $282.00   Web pricing policy
BEFORE   $0.00 Now $282.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Discover cutting-edge functionality with these photoelectronic sensors designed for hygienic applications Crafted with a captive optic cover and made from food-safe materials compliant with FDA standards, these sensors prioritize cleanliness Their innovative design features smooth surfaces without corners or edges, allowing for efficient cleaning agent flow Encased in robust 316L stainless steel (1.

4404/V4A), they can withstand high-pressure cleaning thanks to a degree of protection rated at IP69K, making them ideal for environments requiring regular sanitation For ultimate hygiene, the sensors can be installed seamlessly using available accessories Configuration is user-friendly, completed through a touch teach-in via the fully sealed housing.

Features and Benefits:

    •Made with food safe materials that are FDA approved.

    •Hygienic design makes it easy to clean.

    •Waterproof (IP68/IP69K).

    •Touch teach-in, external teach-in.

Specifications:

 Optical Data Range: 4,000 mm, Reference Reflector/Reflector Foil: RQ100BA, Clear Glass Recognition: yes, Switching Hysteresis: < 5%, Light Source: Red Light, Polarization Filter: yes, Service Life (T = +25 °C): 100,000 h, Max. Ambient Light: 10,000 Lux, Opening Angle: 3°, Single-Lens Optic: yes
 Electrical Data Supply Voltage: 10 ... 30 V DC, Current Consumption (Ub = 24 V): < 40 mA, Switching Frequency: 1,600 Hz, Response Time: 313 µs, On-/Off-Delay (RS-232): 0 ... 5 s, Temperature Drift: < 5%, Temperature Range: -10 ... 60 °C, Switching Output Voltage Drop: < 2.5 V, PNP Switching Output/Switching Current: 200 mA, Residual Current Switching Output: < 50 µA, Short Circuit Protection: yes, Reverse Polarity Protection: yes, Overload Protection: yes, Lockable: yes, Teach Mode: NT, MT, XT, Protection Class: III
 Mechanical Data Setting Method: Teach-In, Housing Material: Stainless steel, V4A (1.4404 / 316L), Degree of Protection: IP69K, IP68, Connection: M12 × 1; 4-pin, Optic Cover: Plastic, PMMA (FDA), Material Control Panel: Plastic, PC (FDA), Ecolab: yes
