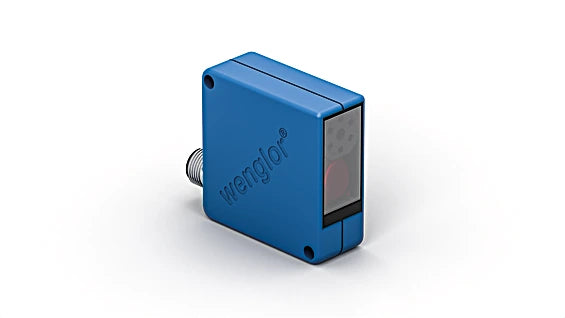

OHP551B0003 - Precision Laser Distance Sensor for Object Detection

SKU: SKU: OHP551B0003 Download PDF

Select a Variant:

OHP551B0003 - Precision Laser Distance Sensor for Object Detection

SET THE QTY:

Now $587.00 Web pricing policy

~~BEFORE $0.00~~ Now $587.00 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Experience precision with these advanced sensors that measure angles to determine distance These devices excel in detecting objects against any backdrop, unaffected by variations in color, shape, or surface texture Their reliability in identifying objects makes them a valuable addition to your technology toolkit.

Features and Benefits:

•Smallest recognizable distance difference: 100 µm.

•Spot diameter: 0.3 mm.

•Max. Ambient Light: 10,000 Lux.

•Service Life (T = +25 °C): 100,000 h.

•Short Circuit Protection: yes.

•Reverse Polarity Protection: yes.

•Overload Protection: yes.

•Full Encapsulation: yes.

Specifications:

Range	55 mm
Setting Range	45 ... 55 mm
Switching Hysteresis	< 100 µm
Light Source	Laser (red)
Wavelength	660 nm
Laser Class (EN 60825-1)	1
Supply Voltage	10 ... 30 V DC
Current Consumption (Ub = 24 V)	< 30 mA
Switching Frequency	800 Hz
Response Time	650 µs
Temperature Drift	< 5 µm/K
Temperature Range	-25 ... 60 °C
Switching Output Voltage Drop	< 2.5 V
PNP Switching Output / Switching Current	200 mA
Contamination Output / Switching Current	50 mA
Protection Class	III
Setting Method	Potentiometer
Housing Material	Plastic, PBT
Degree of Protection	IP67
Connection	M12 × 1; 4-pin
Optic Cover	Glass
FDA Accession Number	1120738-000
