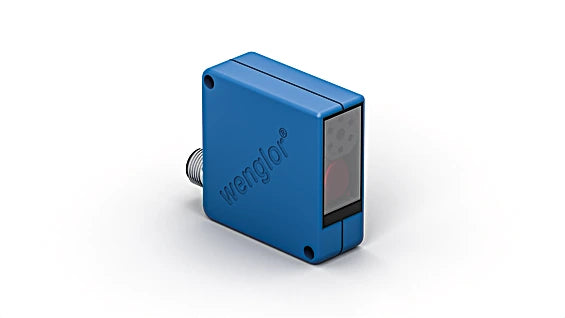

OHP102B0003 - Accurate Triangulation Distance Sensor for Object Detection

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing advanced distance-detection sensors that operate by measuring angles These sensors excel at identifying objects against various backgrounds, with performance remaining unaffected by the object's color, shape, or surface features Ideal for precise object recognition in diverse settings.

Features and Benefits:

•Smallest recognizable distance difference: 400 µm.

•Spot diameter: 0.6 mm.

•Range: 100 mm.

•Setting Range: 60 ... 100 mm.

•Switching Hysteresis: < 400 µm.

•Light Source: Laser (red).

•Wavelength: 660 nm.

•Service Life (T = +25 °C): 100,000 h.

•Laser Class (EN 60825-1): 1.

•Max. Ambient Light: 10,000 Lux.
