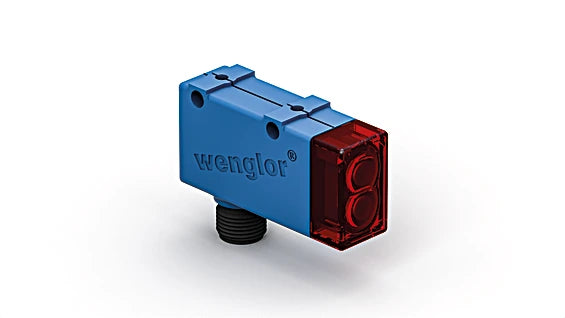

OHM152B0002 - Accurate Reflex Sensor for Reliable Distance Detection

OHM152B0002 - Accurate Reflex Sensor for Reliable Distance Detection

SKU: OHM152B0002 Download PDF

Variant:
  • OHM152B0002 - Accurate Reflex Sensor for Reliable Distance Detection
Now $344.00
BEFORE   $0.00 Now $344.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience precise distance detection with these advanced sensors designed to measure angles effectively They excel in identifying objects against any backdrop, making them incredibly versatile Remarkably, the color, shape, or surface details of the object have minimal impact on the sensor's performance, ensuring reliable operation in various environments.

Features and Benefits:

    •High switching frequency.

    •Special coated optics.

Specifications:

 Optical Data Range 150 mm
 Setting Range 35 ... 150 mm
 Switching Hysteresis 5 %
 Light Source Laser (red)
 Wavelength 650 nm
 Service Life (T = +25 °C) 100,000 h
 Laser Class (EN 60825-1) 1
 Max. Ambient Light 10,000 Lux
 Light Spot Diameter 1 mm at a Distance of 120 mm
 Electrical Data Supply Voltage 10 ... 30 V DC
 Current Consumption (Ub = 24 V) < 20 mA
 Switching Frequency 1,600 Hz
 Response Time 313 µs
 Temperature Drift < 5 %
 Temperature Range -25 ... 60 °C
 Switching Output Voltage Drop < 2.5 V PNP
 Switching Output / Switching Current 200 mA PNP
 Contamination Output / Switching Current 50 mA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Protection Class III
 FDA Accession Number 1120735-000
 Mechanical Data Setting Method Potentiometer
 Housing Material Plastic, PBT
 Coated Optics yes
 Full Encapsulation yes
 Degree of Protection IP67
 Connection M12 × 1; 4-pin
 Safety-relevant Data MTTFd (EN ISO 13849-1) 1,789.61 a
 Output Contamination Output yes
 PNP NO yes
