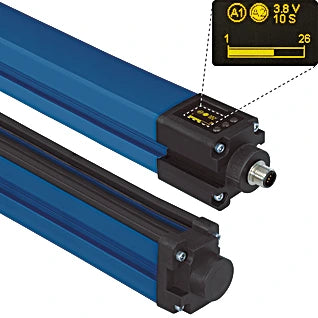

OEEI501U0135 - Integrated Light Curtain with IO-Link and Measurement Features

OEEI501U0135 - Integrated Light Curtain with IO-Link and Measurement Features

SKU: OEEI501U0135 Download PDF

Variant:
  • OEEI501U0135 - Integrated Light Curtain with IO-Link and Measurement Features
Now $452.00
BEFORE   $0.00 Now $452.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing our advanced light curtains, expertly designed for precise measurement tasks With an integrated evaluation unit, these curtains eliminate the need for external connections, streamlining your setup They facilitate object recognition through digital output and offer measurement capabilities via analog output The user-friendly menu-driven graphic display simplifies configuration, while the IO-Link interface allows for easy parameter adjustments and quick diagnostics.

Included with your purchase is the suitable mounting angle, BEF-SET-33, ensuring effortless installation.

Features and Benefits:

    •Graphical display for easy operation.

    •Integrated evaluation unit.

    •Recognition of small parts.

    •Object detection and measurement.

Specifications:

 Optical Data Range 2000 mm
 Measurement Field Height (MFH) 50 mm
 Beam Distance 2 mm
 Light Source Infrared Light
 Service Life (T = +25 °C) 100000 h
 Max. Ambient Light 10000 Lux
 Opening Angle 10 °
 Sensor Type Receiver
 Supply Voltage 18 ... 30 V DC
 Current Consumption (Ub = 24 V) < 60 mA
 Switching Frequency 150 Hz
 Response Time 3 ms
 On-/Off-Delay 0 ... 10 s
 Temperature Drift < 10 %
 Temperature Range -25 ... 60 °C
 Number of Switching Outputs 2
 Switching Output Voltage Drop < 2.5 V
 Switching Output / Switching Current 100 mA
 Residual Current Switching Output < 50 µA
 Analog Output 0...10 V
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Lockable yes
 Interface IO-Link V1.0
 Protection Class III
 Setting Method Menu (OLED)
 Housing Material Aluminum, powder-coated, Plastic, PA, Plastic, PBT
 Optic Cover Plastic, PC
 Degree of Protection IP65
 Connection M12 × 1; 5-pin
 MTTFd (EN ISO 13849-1) 282.15 a
 Output PNP NC yes
 IO-Link yes
 Adjustable parameters Analog output 0...10 V, 4...20 mA, Output Error Output, Push-pull, PNP, Circuit NC, NC/NO, NO
