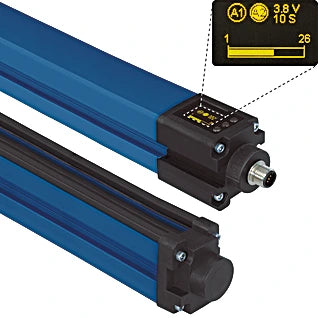

OEEI102U0135 - Integrated Light Curtain with IO-Link for Easy Measurement

OEEI102U0135 - Integrated Light Curtain with IO-Link for Easy Measurement

SKU: OEEI102U0135   Download PDF

Select a Variant:
  • OEEI102U0135 - Integrated Light Curtain with IO-Link for Easy Measurement
Qty:
Now $501.00   Web pricing policy
BEFORE   $0.00 Now $501.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing our innovative Light Curtains designed for precise measurement tasks, featuring a built-in evaluation unit that eliminates the need for additional connection equipment These curtains are adept at object detection with digital outputs and offer analog output for measurement purposes The user-friendly interface with a graphic display simplifies the setup process, while the IO-Link interface enables quick diagnostics and easy parameter adjustments.

For installation, the suitable mounting angle BEF-SET-33 is included in the package for your convenience.

Features and Benefits:

    •Graphical display for easy operation.

    •Integrated evaluation unit.

    •Recognition of small parts.

    •Object detection and measurement.

Specifications:

 Range 2000 mm
 Measurement Field Height (MFH) 100 mm
 Beam Distance 2 mm
 Light Source Infrared Light
 Service Life (T = +25 °C) 100000 h
 Max Ambient Light 10000 Lux
 Opening Angle 10 °
 Sensor Type Receiver
 Supply Voltage 18 ... 30 V DC
 Current Consumption (Ub = 24 V) < 60 mA
 Switching Frequency 85 Hz
 Response Time 6 ms
 On-/Off-Delay 0 ... 10 s
 Temperature Drift < 10 %
 Temperature Range -25 ... 60 °C
 Number of Switching Outputs 2
 Switching Output Voltage Drop < 2.5 V
 Switching Output / Switching Current 100 mA
 Residual Current Switching Output < 50 µA
 Analog Output 0...10 V
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Lockable yes
 Interface IO-Link V1.0
 Protection Class III
 Setting Method Menu (OLED)
 Housing Material Aluminum, powder-coated; Plastic, PA; Plastic, PBT
 Optic Cover Plastic, PC
 Degree of Protection IP65
 Connection M12 × 1; 5-pin
 MTTFd (EN ISO 13849-1) 193.63 a
 Output PNP NC yes
 IO-Link yes
 Adjustable parameters Analog output 0...10 V; 4...20 mA; Output Error Output; Push-pull PNP; Circuit NC; NC/NO; NO
