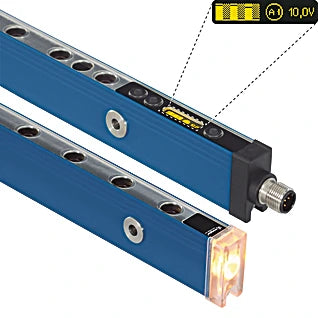

OEEB752U0135 - Light Curtain with Integrated Unit for Precision Measurement

OEEB752U0135 - Light Curtain with Integrated Unit for Precision Measurement

SKU: OEEB752U0135 Download PDF

Variant:
  • OEEB752U0135 - Light Curtain with Integrated Unit for Precision Measurement
Now $5.90
BEFORE   $0.00 Now $5.90
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

The Light Curtain for Measuring Applications features a built-in evaluation unit, which removes the necessity for separate connection components It proficiently identifies objects through its digital output and measures them with its analog output Designed for straightforward installation, it includes a menu-driven graphic display for user convenience Moreover, the IO-Link interface allows for easy parametrization and swift diagnostics.

Features and Benefits:

    •Integrated evaluation unit.

    •Object detection and measurement.

    •360° visible switching status display.

    •Graphical display for easy operation.

Specifications:

 Range 3000 mm
 Measurement Field Height (MFH) 750 mm
 Beam Distance 30 mm
 Light Source Infrared Light
 Service Life (T = +25 °C) 100000 h
 Max. Ambient Light 10000 Lux
 Opening Angle 10 °
 Sensor Type Receiver
 Supply Voltage 18...30 V DC
 Current Consumption (Ub = 24 V) < 50 mA
 Switching Frequency 18 Hz
 Response Time 27 ms
 On-/Off-Delay 0...10 s
 Temperature Drift < 10 %
 Temperature Range -25...60 °C
 Number of Switching Outputs 2
 Switching Output Voltage Drop < 2.5 V
 Switching Output / Switching Current 100 mA
 Residual Current Switching Output < 50 µA
 Analog Output 0...10 V
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Lockable yes
 Interface IO-Link V1.0
 Protection Class III
 Setting Method Menu (OLED)
 Housing Material Aluminum, powder-coated; Plastic, PC
 Optic Cover Plastic, PC
 Degree of Protection IP65
 Connection M12 × 1; 5-pin
 MTTFd (EN ISO 13849-1) 153.3 a
 Output PNP NC yes
 IO-Link yes
 Adjustable parameters Analog output 0...10 V; 4...20 mA; Output Error Output; Push-pull PNP; Circuit NC; NC/NO; NO
