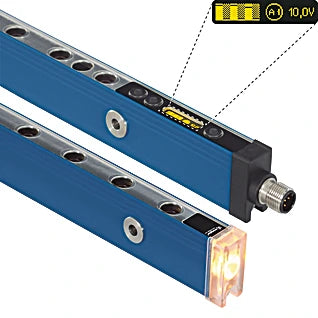

OEEB452U0135 - Integrated Light Curtain with IO-Link for Easy Measurement

OEEB452U0135 - Integrated Light Curtain with IO-Link for Easy Measurement

SKU: OEEB452U0135 Download PDF

Variant:
  • OEEB452U0135 - Integrated Light Curtain with IO-Link for Easy Measurement
Now $466.00
BEFORE   $0.00 Now $466.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience the convenience of our light curtains, which come with a built-in evaluation unit, eliminating the hassle of needing external connection units These sophisticated devices detect objects using digital outputs and provide measurements via analog outputs With an intuitive menu-driven graphic display, setup is a breeze The integrated IO-Link interface ensures easy parametrization and quick troubleshooting, making installation and operation seamless.

Features and Benefits:

    •Integrated evaluation unit.

    •Object detection and measurement.

    •360° visible switching status display.

    •Graphical display for easy operation.

Specifications:

 Measurement Field Height (MFH) 450 mm
 Range 3000 mm
 Beam Distance 30 mm
 Light Source Infrared Light
 Service Life (T = +25 °C) 100000 h
 Max. Ambient Light 10000 Lux
 Opening Angle 10 °
 Sensor Type Receiver
 Supply Voltage 18 ... 30 V DC
 Current Consumption (Ub = 24 V) < 50 mA
 Switching Frequency 29 Hz
 Response Time 17 ms
 On-/Off-Delay 0 ... 10 s
 Temperature Drift < 10 %
 Temperature Range -25 ... 60 °C
 Number of Switching Outputs 2
 Switching Output Voltage Drop < 2.5 V
 Switching Output / Switching Current 100 mA
 Residual Current Switching Output < 50 µA
 Analog Output 0...10 V
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Lockable yes
 Interface IO-Link V1.0
 Protection Class III
 Setting Method Menu (OLED)
 Housing Material Aluminum, powder-coated, Plastic, PC
 Optic Cover Plastic, PC
 Degree of Protection IP65
 Connection M12 × 1; 5-pin
 MTTFd (EN ISO 13849-1) 219.29 a
 Output PNP NC yes
 IO-Link yes
 Adjustable parameters Analog output 0...10 V, 4...20 mA
 Output Error Output
 Push-pull PNP Circuit NC, NC/NO, NO
 Other parameters Off-delay, On-delay
 Display brightness may decrease with age. This does not result in any impairment of the sensor function.
