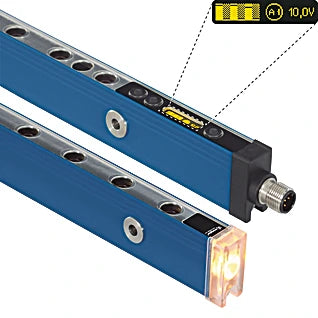

OEEB302U0135 - Integrated Light Curtain with Digital Output & User-Friendly Display

OEEB302U0135 - Integrated Light Curtain with Digital Output & User-Friendly Display

SKU: OEEB302U0135   Download PDF

Select a Variant:
  • OEEB302U0135 - Integrated Light Curtain with Digital Output & User-Friendly Display
Qty:
Now $405.00   Web pricing policy
BEFORE   $0.00 Now $405.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Enhance your measurement tasks with this innovative light curtain, featuring a built-in evaluation unit that negates the need for external connections It utilizes a digital output for object recognition and offers precise measurements through analog output The intuitive graphical display makes setup a breeze, while the IO-Link interface allows for effortless parameter adjustments and reliable diagnostics.

Features and Benefits:

    •Integrated evaluation unit.

    •Object detection and measurement.

    •360° visible switching status display.

    •Graphical display for easy operation.

Specifications:

 Range 3,000 mm
 Measurement Field Height (MFH) 300 mm
 Beam Distance 30 mm
 Light Source Infrared Light
 Service Life (T = +25 °C) 100,000 h
 Max. Ambient Light 10,000 Lux
 Opening Angle 10 °
 Sensor Type Receiver
 Supply Voltage 18 ... 30 V DC
 Current Consumption (Ub = 24 V) < 50 mA
 Switching Frequency 41 Hz
 Response Time 12 ms
 On-/Off-Delay 0 ... 10 s
 Temperature Drift < 10 %
 Temperature Range -25 ... 60 °C
 Number of Switching Outputs 2
 Switching Output Voltage Drop < 2.5 V
 Switching Output / Switching Current 100 mA
 Residual Current Switching Output < 50 µA
 Analog Output 0...10 V
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Lockable yes
 Interface IO-Link V1.0
 Protection Class III
 Setting Method Menu (OLED)
 Housing Material Aluminum, powder-coated; Plastic, PC
 Optic Cover Plastic, PC
 Degree of Protection IP65
 Connection M12 × 1; 5-pin
 MTTFd (EN ISO 13849-1) 279.44 a
 Output PNP NC yes
 IO-Link yes
 Adjustable parameters Analog output 0...10 V; 4...20 mA; Error Output; Push-pull; PNP; Circuit NC; NC/NO; NO
 Other parameters Off-delay; On-delay
