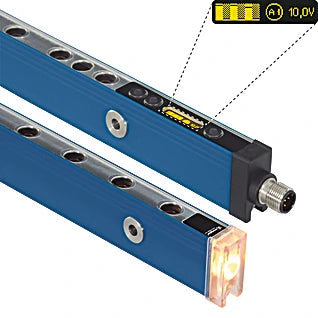

OEEB152U0135 - Advanced Light Curtain with Integrated Evaluation Unit

OEEB152U0135 - Advanced Light Curtain with Integrated Evaluation Unit

SKU: OEEB152U0135   Download PDF

Select a Variant:
  • OEEB152U0135 - Advanced Light Curtain with Integrated Evaluation Unit
Qty:
Now $342.00   Web pricing policy
BEFORE   $0.00 Now $342.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing advanced light curtains tailored for measurement applications, complete with a built-in evaluation unit that removes the necessity for external connection devices These intelligent curtains feature a capability to identify objects through digital output while providing precise measurements via analog output The intuitive setup is facilitated by a user-friendly graphic display with menu navigation.

Moreover, the IO-Link interface enables easy parameter adjustments and efficient diagnostics.

Features and Benefits:

    •Integrated evaluation unit.

    •Object detection and measurement.

    •360° visible switching status display.

    •Graphical display for easy operation.

Specifications:

 Optical Data Range 3000 mm
 Measurement Field Height (MFH) 150 mm
 Beam Distance 30 mm
 Light Source Infrared Light
 Service Life (T = +25 °C) 100000 h
 Max. Ambient Light 10000 Lux
 Opening Angle 10 °
 Sensor Type Receiver
 Supply Voltage 18 ... 30 V DC
 Current Consumption (Ub = 24 V) < 50 mA
 Switching Frequency 69 Hz
 Response Time 7 ms
 On-/Off-Delay 0 ... 10 s
 Temperature Drift < 10 %
 Temperature Range -25 ... 60 °C
 Number of Switching Outputs 2
 Switching Output Voltage Drop < 2.5 V
 Switching Output / Switching Current 100 mA
 Residual Current Switching Output < 50 µA
 Analog Output 0...10 V
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Lockable yes
 Interface IO-Link V1.0
 Protection Class III
 Setting Method Menu (OLED)
 Housing Material Aluminum, powder-coated
 Degree of Protection IP65
 Connection M12 × 1; 5-pin
 MTTFd (EN ISO 13849-1) 385.04 a
 Output PNP NC yes
 IO-Link yes
 Adjustable parameters Analog output 0...10 V, 4...20 mA
 Output Push-pull PNP
 Error Output Circuit NC, NC/NO, NO
