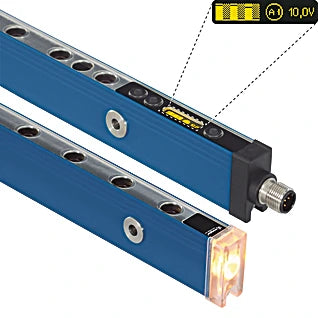

OEEB133U0135 - Light Curtain with Integrated Evaluation Unit for Efficient Measurement

OEEB133U0135 - Light Curtain with Integrated Evaluation Unit for Efficient Measurement

SKU: OEEB133U0135 Download PDF

Variant:
  • OEEB133U0135 - Light Curtain with Integrated Evaluation Unit for Efficient Measurement
Now $835.00
BEFORE   $0.00 Now $835.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

This innovative light curtain is designed specifically for measurement tasks and comes with an integrated evaluation unit, eliminating the need for external connections It can accurately detect objects using a digital output and perform measurements via an analog output Users will appreciate the intuitive setup process, guided by a menu-controlled graphic display Additionally, effective parametrization and quick diagnostics are facilitated through the efficient IO-Link interface.

Features and Benefits:

    •Integrated evaluation unit.

    •Object detection and measurement.

    •360° visible switching status display.

    •Graphical display for easy operation.

Specifications:

 Measurement Field Height (MFH) 1,350 mm
 Range 3,000 mm
 Beam Distance 30 mm
 Light Source Infrared Light
 Service Life (T = +25 °C) 100,000 h
 Max. Ambient Light 10,000 Lux
 Opening Angle 10 °
 Sensor Type Receiver
 Supply Voltage 18 ... 30 V DC
 Current Consumption (Ub = 24 V) < 50 mA
 Switching Frequency 11 Hz
 Response Time 47 ms
 On-/Off-Delay 0 ... 10 s
 Temperature Drift < 10 %
 Temperature Range -25 ... 60 °C
 Number of Switching Outputs 2
 Switching Output Voltage Drop < 2.5 V
 Switching Output / Switching Current 100 mA
 Residual Current Switching Output < 50 µA
 Analog Output 0...10 V
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Lockable yes
 Interface IO-Link V1.0
 Protection Class III
 Setting Method Menu (OLED)
 Housing Material Aluminum, powder-coated; Plastic, PC
 Optic Cover Plastic, PC
 Degree of Protection IP65
 Connection M12 × 1; 5-pin
 MTTFd (EN ISO 13849-1) 95.7 a
 Output PNP NC yes
 IO-Link yes
 Adjustable parameters Analog output 0...10 V; 4...20 mA
 Output Error Output; Push-pull PNP; Circuit NC; NC/NO; NO
