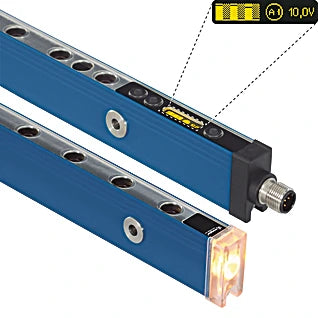

OEEB103U0135 - Integrated Light Curtain with Easy Setup for Measurement Tasks

SKU: SKU: OEEB103U0135 Download PDF

Variant:

OEEB103U0135 - Integrated Light Curtain with Easy Setup for Measurement Tasks

Now $711.00

~~BEFORE $0.00~~ Now $711.00

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience seamless measuring tasks with this innovative light curtain that comes with a built-in evaluation unit, eliminating the need for external connections It offers precise object recognition through digital output and reliable measurement capabilities via analog output The intuitive interface is designed for ease of use, featuring a menu-driven graphic display for hassle-free parameter settings, along with quick diagnostics through the IO-Link interface.

Features and Benefits:

•Integrated evaluation unit.

•Object detection and measurement.

•360° visible switching status display.

•Graphical display for easy operation.

Specifications:

Range:	3,000 mm
Measurement Field Height (MFH):	1,050 mm
Beam Distance:	30 mm
Light Source:	Infrared Light
Service Life (T = +25 °C):	100,000 h
Max. Ambient Light:	10,000 Lux
Opening Angle:	10 °
Sensor Type:	Receiver
Supply Voltage:	18 ... 30 V DC
Current Consumption (Ub = 24 V):	< 50 mA
Switching Frequency:	13 Hz
Response Time:	37 ms
On-/Off-Delay:	0 ... 10 s
Temperature Drift:	< 10 %
Temperature Range:	-25 ... 60 °C
Number of Switching Outputs:	2
Switching Output Voltage Drop:	< 2.5 V
Switching Output / Switching Current:	100 mA
Residual Current Switching Output:	< 50 µA
Analog Output:	0...10 V
Short Circuit Protection:	yes
Reverse Polarity Protection:	yes
Overload Protection:	yes
Lockable:	yes
Interface:	IO-Link V1.0
Protection Class:	III
Setting Method:	Menu (OLED)
Housing Material:	Aluminum, powder-coated, Plastic, PC
Optic Cover:	Plastic, PC
Degree of Protection:	IP65
Connection:	M12 × 1; 5-pin
MTTFd (EN ISO 13849-1):	117.84 a
Output PNP NC:	yes
IO-Link:	yes
Adjustable parameters Analog output:	0...10 V, 4...20 mA
Output:	Push-pull PNP
Error Output Circuit:	NC, NC/NO, NO
