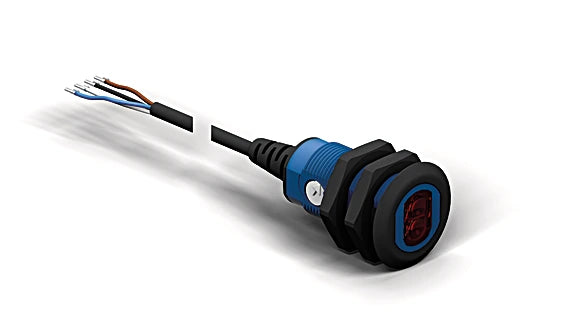

OEDK803A0091 - Reliable Through-Beam Sensor for Industrial Use

SKU: SKU: OEDK803A0091 Download PDF

Select a Variant:

OEDK803A0091 - Reliable Through-Beam Sensor for Industrial Use

SET THE QTY:

Now $55.60 Web pricing policy

~~BEFORE $0.00~~ Now $55.60 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

These through-beam sensors are specifically engineered for industrial applications, showcasing an impressive operational range Their robust design guarantees reliable performance, even in heavily contaminated settings Additionally, a test input feature allows for easy verification of the sensors' functionality.

Features and Benefits:

•Clever inclusive mounting technology.

•Switching distance adjuster.

•Simple installation.

•Large working range.

•Minimal installation space.

Specifications:

Range	8,000 mm
Switching Hysteresis	< 15 %
Light Source	Red Light
Service Life (T = +25 °C)	100,000 h
Max. Ambient Light	10,000 Lux
Opening Angle	4 °
Sensor Type	Receiver
Supply Voltage	10 ... 30 V DC
Current Consumption (Ub = 24 V)	< 20 mA
Switching Frequency	600 Hz
Response Time	833 µs
Temperature Drift	< 10 %
Temperature Range	-25 ... 60 °C
Switching Output Voltage Drop	< 2.5 V
Switching Output / Switching Current	100 mA
Residual Current Switching Output	< 50 µA
Short Circuit Protection	yes
Reverse Polarity Protection	yes
Overload Protection	yes
Protection Class	III
Setting Method	Potentiometer
Housing Material	Plastic, ABS/GF
Degree of Protection	IP67
Connection	Cable; 4-wire
Cable Length	2 m
Cable Jacket Material	PVC
