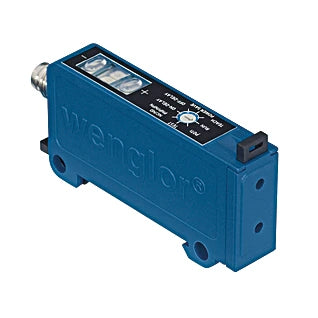

ODX202P0007 - Wenglor Fiber-Optic Sensor with Teach-In Functionality

ODX202P0007 - Wenglor Fiber-Optic Sensor with Teach-In Functionality

SKU: ODX202P0007 Download PDF

Variant:
  • ODX202P0007 - Wenglor Fiber-Optic Sensor with Teach-In Functionality
Now $165.00
BEFORE   $0.00 Now $165.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing Wenglor fiber-optic sensors, which seamlessly connect to fiber-optic cables for enhanced performance These sensors come equipped with a user-friendly teach-in feature, allowing for precise adjustments to effectively detect even transparent objects during through-beam operation The scanning width is intelligently customized for each unique application through external teach-in Additionally, installation is a breeze, as these sensors can be easily mounted on standard DIN rails.

Features and Benefits:

    •Recognition of transparent objects.

    •Large detection and working range.

    •Reflex and through-beam operation mode are possible.

    •External teach-in.

    •Key potentiometer, teach-in.

    •Mount for fiber optic cable adapter.

Specifications:

 Optical Data - Switching Hysteresis < 15 %
 Light Source Red Light
 Service Life (T = +25 °C) 100,000 h
 Max. Ambient Light 10,000 Lux
 Electrical Data - Supply Voltage 10 ... 30 V DC
 Current Consumption (Ub = 24 V) < 40 mA
 Switching Frequency 2 kHz
 Response Time 250 µs
 On-/Off-Delay 0 ... 200 ms
 Temperature Drift < 10 %
 Temperature Range -25 ... 60 °C
 Switching Output - Voltage Drop < 2.5 V
 Switching Output / Switching Current 200 mA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Teach Mode NT, MT, ZT, DT, TP
 Protection Class III
 Mechanical Data - Setting Method Teach-In
 Housing Material Plastic, PBT
 Full Encapsulation yes
 Degree of Protection IP65
 Connection M8 × 1; 4-pin
 DIN-Rail mounting 35 mm
 Output Configurable as PNP/NPN /Push-Pull yes
 Switchable to NC/NO yes
 Adjustable parameters Output Push-pull, NPN, PNP, Circuit: NC, NC/NO, NC+NO
