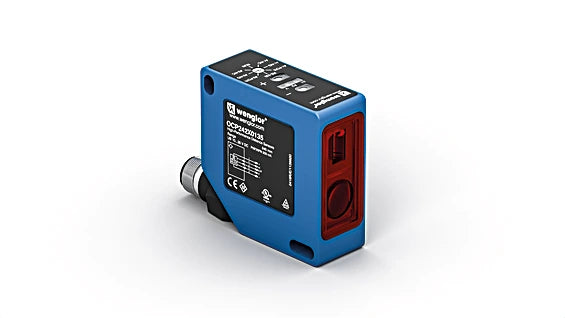

OCP801H0180 - High-Resolution Laser Distance Sensor with Analog Output Integration

OCP801H0180 - High-Resolution Laser Distance Sensor with Analog Output Integration

SKU: OCP801H0180   Download PDF

Select a Variant:
  • OCP801H0180 - High-Resolution Laser Distance Sensor with Analog Output Integration
Qty:
Now $1,239.00   Web pricing policy
BEFORE   $0.00 Now $1,239.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Experience precision with these advanced sensors, which leverage high-resolution CMOS line and DSP technology to accurately measure distance through angular measurement This innovative design effectively nullifies variations caused by material type, color, and brightness The sensors also feature a user-configurable analogue output, adaptable for either 0 to 10 V (or 10 to 0 V) voltage settings or current outputs ranging from 4 to 20 mA (or 20 to 4 mA), offering versatility for various applications.

Features and Benefits:

    •High resolution: 8 µm (resolution-mode).

    •Linearity: 0.1 % (resolution-mode).

    •Zoom function.

    •Measured value independent of material, color and brightness.

Specifications:

 Working Range 30 ... 80 mm
 Measuring Range 50 mm
 Reproducibility maximum 60 µm
 Reproducibility: 1 Sigma 20 µm
 Linearity Deviation 80 µm
 Light Source Laser (red)
 Wavelength 660 nm
 Service Life (T = +25 °C) 100,000 h
 Laser Class (EN 60825-1) 1
 Max. Ambient Light 10,000 Lux
 Light Spot Diameter see Table 1
 Supply Voltage 18 ... 30 V DC
 Current Consumption (Ub = 24 V) < 80 mA
 Measuring Rate 1,000 /s
 Measuring Rate (Resolution-Mode) 500 /s
 Response Time 1,000 µs
 Response Time (Resolution Mode) < 2,000 µs
 Temperature Drift < 15 µm/K
 Temperature Range -25 ... 50 °C
 Analog Output yes
 Load Current Voltage Output < 1 mA
 Current Output Load Resistance < 500 Ohm
 Interface RS-232
 Transmission rate 38,400 Bd
 Protection Class III
 FDA Accession Number 1120734-000
 Setting Method Teach-In
 Housing Material Plastic, ABS, Plastic, PC
 Optic Cover Plastic, PMMA
 Degree of Protection IP67
 Connection M12 × 1; 8-pin
 MTTFd (EN ISO 13849-1) 713.97 a
 Output Error Output yes
 RS-232 Interface yes
 Adjustable parameters Analog output 0...10 V, 4...20 mA
