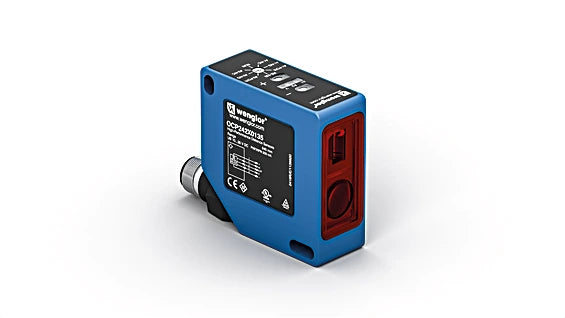

OCP662X0135 - High-Resolution Laser Distance Sensor with Adjustable Outputs

OCP662X0135 - High-Resolution Laser Distance Sensor with Adjustable Outputs

SKU: OCP662X0135 Download PDF

Variant:
  • OCP662X0135 - High-Resolution Laser Distance Sensor with Adjustable Outputs
Now $672.00
BEFORE   $0.00 Now $672.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience precise distance measurements with the Laser Distance Sensor, which employs advanced CMOS line and DSP technologies This device calculates distances by measuring angles, effectively minimizing variations caused by different materials, colors, and lighting conditions Featuring two independent switching outputs, you can easily adjust the thresholds and delay settings in increments of 10 ms.

Additionally, sensor functions and data outputs can be conveniently managed through an RS-232 interface for seamless integration into your projects.

Features and Benefits:

    •CMOS line array.

    •Highly accurate switching distance.

    •Minimal switching hysteresis.

    •Switching point independent of material, color and brightness.

Specifications:

 Range 660 mm
 Setting Range 60 ... 660 mm
 Switching Hysteresis < 1 %
 Light Source Laser (red)
 Wavelength 655 nm
 Service Life (T = +25 °C) 100,000 h
 Laser Class (EN 60825-1) 1
 Max. Ambient Light 10,000 Lux
 Light Spot Diameter see Table 1
 Supply Voltage 10 ... 30 V DC
 Current Consumption (Ub = 24 V) < 50 mA
 Switching Frequency 100 Hz
 Response Time < 5 ms
 On-/Off-Delay (RS-232) 0 ... 1 s
 Temperature Drift < 50 µm/K
 Temperature Range -25 ... 60 °C
 Number of Switching Outputs 2
 Switching Output Voltage Drop < 1.5 V
 Switching Output / Switching Current 200 mA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Teach Mode HT, VT, FT, TP
 Transmission rate 9,600 Bd
 Protection Class III
 FDA Accession Number 1120728-000
 Setting Method Teach-In
 Housing Material Plastic, ABS, PC
 Degree of Protection IP67
 Connection M12 × 1; 4-pin
 Optic Cover Plastic, PMMA
 MTTFd (EN ISO 13849-1) 918.59 a
 Output Error Output yes
 PNP NO yes
 RS-232 with Adapterbox yes
 External teach-in input yes
