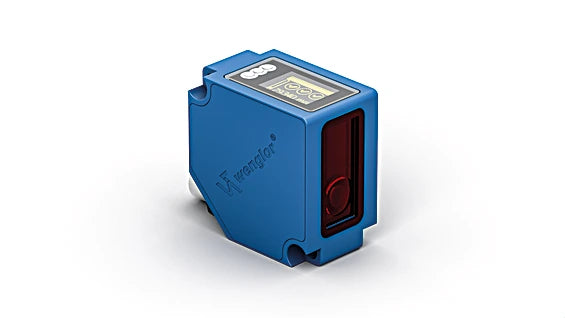

OCP662P0150P - High-Resolution Laser Distance Sensor with Power over Ethernet

OCP662P0150P - High-Resolution Laser Distance Sensor with Power over Ethernet

SKU: OCP662P0150P   Download PDF

Select a Variant:
  • OCP662P0150P - High-Resolution Laser Distance Sensor with Power over Ethernet
Qty:
Now $1,153.00   Web pricing policy
BEFORE   $0.00 Now $1,153.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Experience precision distance measurement with these advanced sensors featuring high-resolution CMOS line and DSP technology Utilizing angular measurement, these sensors eliminate the need for analog and digital input cards at control units thanks to their Industrial Ethernet compatibility This innovation allows for real-time reading, analysis, and processing of service and measurement data directly in the control unit without the hassle of conversion.

Additionally, the Power over Ethernet functionality combines data transmission and power supply in a single cable, streamlining installation and reducing wiring complexities.

Features and Benefits:

    •Industrial Ethernet.

    •Measured value independent of material, color and brightness.

    •Web server and graphic display for simple operation.

    •CMOS line array.

    •Optical Data.

Specifications:

 Working Range 60 ... 660 mm
 Measuring Range 600 mm
 Reproducibility maximum 70 ... 1,000 µm
 Linearity Deviation 100 ... 1,000 µm
 Light Source Laser (red)
 Wavelength 655 nm
 Service Life (T = +25 °C) 100,000 h
 Laser Class (EN 60825-1) 1
 Max. Ambient Light 10,000 Lux
 Light Spot Diameter 3.6 × 0.9 mm
 Port Type 100BASE-TX
 PoE Class 1
 Output rate 330 /s
 Temperature Drift < 50 µm/K
 Temperature Range -25 ... 50 °C
 Reverse Polarity Protection yes
 Interface PROFINET
 Protection Class III
 Setting Method Menu (OLED)
 Housing Material Zinc diecasting, Plastic, PMMA
 Degree of Protection IP68
 Connection M12 × 1; 8-pin, X-cod.
 Optic Cover Plastic, PMMA
 MTTFd (EN ISO 13849-1) 350.69 a
 Web server yes
 Output PROFINET-I/O, CC-B yes
 Adjustable parameters Other parameters: Resolution, Output rate, Exposure time, Filter, Laser light, Offset, Teach-in mode
