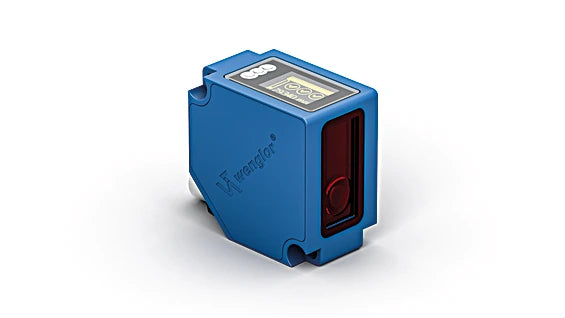

OCP352P0150P - High-Resolution Laser Distance Sensor with PoE Integration

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience accurate distance measurement with advanced sensors that utilize high-resolution CMOS line and DSP technology, providing precise angular measurements The integration of Industrial Ethernet eliminates the need for separate analog and digital input cards in control units, enabling instantaneous reading and analysis of service and measurement data without conversion delays Additionally, Power over Ethernet simplifies your setup by combining data transmission and power supply in one cable, greatly reducing the complexity of wiring.

Features and Benefits:

•Industrial Ethernet.

•Measured value independent of material, color and brightness.

•Web server and graphic display for simple operation.

•Optical Data with a working range of 50 ... 350 mm.

•Maximum reproducibility of 20 ... 150 µm.

•Linearity deviation of 100 ... 500 µm.

•Laser light source with a wavelength of 655 nm.

•Service life rated at 100,000 hours at +25 °C.

•Laser class 1 (EN 60825-1).

•Maximum ambient light tolerance of 10,000 Lux.

•Light spot diameter of 3.6 × 0.9 mm.

•Reverse polarity protection.
