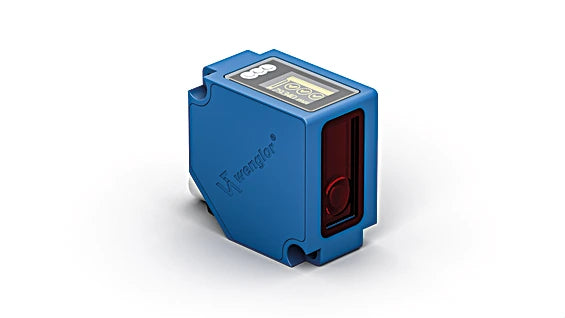

OCP352P0150E - High-Resolution Laser Distance Sensor with Ethernet Connectivity

OCP352P0150E - High-Resolution Laser Distance Sensor with Ethernet Connectivity

SKU: OCP352P0150E   Download PDF

Select a Variant:
  • OCP352P0150E - High-Resolution Laser Distance Sensor with Ethernet Connectivity
Qty:
Now $14.60   Web pricing policy
BEFORE   $0.00 Now $14.60 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Experience precision with these advanced sensors that utilize high-resolution CMOS line and DSP technology for accurate distance measurement through angular positioning Equipped with Industrial Ethernet, these sensors eliminate the need for separate analog and digital input cards, allowing all service and measurement data to be read, analyzed, and processed in real-time directly within the control unit—no conversion needed.

Plus, the Power over Ethernet feature lets you streamline your setup by combining data transfer and power supply into a single cable, simplifying installation and reducing wiring requirements.

Features and Benefits:

    •Industrial Ethernet.

    •Measured value independent of material, color and brightness.

    •Web server and graphic display for simple operation.

    •CMOS line array.

Specifications:

 Working Range 50 ... 350 mm
 Measuring Range 300 mm
 Reproducibility maximum 20 ... 150 µm
 Linearity Deviation 100 ... 500 µm
 Light Source Laser (red)
 Wavelength 655 nm
 Service Life (T = +25 °C) 100,000 h
 Laser Class (EN 60825-1) 1
 Max. Ambient Light 10,000 Lux
 Light Spot Diameter 3.6 × 0.9 mm
 Port Type 100BASE-TX
 PoE Class 1
 Output rate 330 /s
 Temperature Drift < 20 µm/K
 Temperature Range -25 ... 50 °C
 Reverse Polarity Protection yes
 Interface EtherNet/IP
 Protection Class III
 Setting Method Menu (OLED)
 Housing Material Zinc diecasting, Plastic, PMMA
 Degree of Protection IP68
 Connection M12 × 1; 8-pin, X-cod.
 Optic Cover Plastic, PMMA
 MTTFd (EN ISO 13849-1) 350.69 a
 Web server yes
 Output EtherNet/IP yes
 Adjustable parameters Other parameters include Resolution, Output rate, Exposure time, Filter, Laser light, Offset, Emitted light, Teach-in mode
