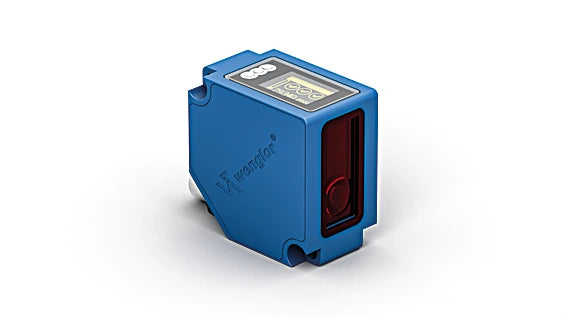

OCP162P0150P - High-Resolution Laser Distance Sensor with Power over Ethernet

OCP162P0150P - High-Resolution Laser Distance Sensor with Power over Ethernet

SKU: OCP162P0150P Download PDF

Variant:
  • OCP162P0150P - High-Resolution Laser Distance Sensor with Power over Ethernet
Now $1,523.00
BEFORE   $0.00 Now $1,523.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Unlock precision with these advanced sensors that leverage high-resolution CMOS line and DSP technology for accurate angular distance measurement By utilizing Industrial Ethernet, they streamline operations by removing the necessity for separate analog and digital input cards at control units Real-time processing of measurement and service data enhances efficiency with no additional conversions required.

Plus, the Power over Ethernet feature further simplifies installation by merging data transmission and power supply into a single cable, reducing clutter and complexity.

Features and Benefits:

    •Industrial Ethernet.

    •Measured value independent of material, color and brightness.

    •Web server and graphic display for simple operation.

    •CMOS line array.

Specifications:

 Working Range 40 ... 160 mm
 Measuring Range 120 mm
 Reproducibility maximum 20 ... 70 µm
 Linearity Deviation 50 ... 160 µm
 Light Source Laser (red)
 Wavelength 655 nm
 Service Life (T = +25 °C) 100,000 h
 Laser Class (EN 60825-1) 1
 Max. Ambient Light 10,000 Lux
 Light Spot Diameter 3.6 × 0.9 mm
 Port Type 100BASE-TX
 PoE Class 1
 Output rate 330 /s
 Temperature Drift < 10 µm/K
 Temperature Range -25 ... 50 °C
 Reverse Polarity Protection yes
 Interface PROFINET
 Protection Class III
 FDA Accession Number 2010120-000
 Setting Method Menu (OLED)
 Housing Material Plastic, PMMA; Zinc diecasting
 Degree of Protection IP68
 Connection M12 × 1; 8-pin, X-cod.
 Optic Cover Plastic, PMMA
 MTTFd (EN ISO 13849-1) 350.69 a
 Web server yes
 Output PROFINET-I/O, CC-B yes
 Adjustable parameters Other parameters: Resolution, Output rate, Exposure time, Filter, Laser light, Offset, Teach-in mode
