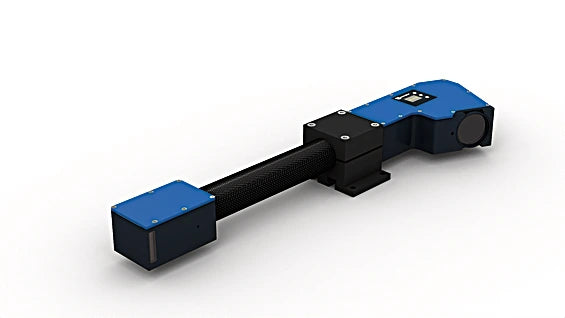

MLWL234 - Advanced 2D/3D Laser Profile Sensor with GigE Vision Compatibility

MLWL234 - Advanced 2D/3D Laser Profile Sensor with GigE Vision Compatibility

SKU: MLWL234 Download PDF

Variant:
  • MLWL234 - Advanced 2D/3D Laser Profile Sensor with GigE Vision Compatibility
Now $24,565.00
BEFORE   $0.00 Now $24,565.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience precision with the 2D/3D Profile Sensors that utilize a laser line projection to determine an accurate height profile of objects The integrated camera operates at a triangulation angle to deliver linearized results The versatile weCat3D series is compatible with no additional control unit required, effortlessly integrating via the DLL program library or following the GigE Vision standard.

For added convenience, wenglor provides proprietary software solutions tailored to fit your specific application needs.

Features and Benefits:

    •Up to 12 million measuring points per second.

    •Optimized profile quality thanks to HDR function.

    •Precise measuring range resolution X (> 2000 measuring points).

    •Blue light for applications on metal, organic or semi-transparent materials.

Specifications:

 Working range Z 600 ... 2,000 mm
 Measuring range Z 1,400 mm
 Measuring range X 440 ... 1,300 mm
 Linearity Deviation 350 µm
 Resolution Z 39 ... 289 µm
 Resolution X 251 ... 683 µm
 Light Source Laser (blue)
 Wavelength 405 nm
 Service Life (T = +25 °C) 20,000 h
 Laser Class (EN 60825-1) 2
 Ambient temperature 0 ... 45 °C
 Storage temperature -20 ... 70 °C
 Max. Ambient Light 5,000 Lux
 EMC DIN EN 61000-6-2; 61000-6-4
 Shock resistance per DIN IEC 68-2-27 30 g / 11 ms
 Vibration resistance per DIN IEC 60068-2-6 6 g (10...55 Hz)
 Atmospheric humidity 5...95%, non-condensing
 Supply Voltage 18 ... 30 V DC
 Current Consumption (Ub = 24 V) 300 mA
 Measuring Rate 175 ... 6,000/s
 Subsampling 350 ... 6,000/s
 Inputs/Outputs 4
 Switching Output Voltage Drop < 1.5 V
 Switching Output / Switching Current 100 mA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Interface Ethernet TCP/IP
 Transmission rate 100/1000 Mbit/s
 Protection Class III
 FDA Accession Number 1710273-000
 Housing Material Aluminum, anodised
 Degree of Protection IP67
 UL Enclosure Type 1
 Connection M12 × 1; 12-pin
 Type of Connection Ethernet M12 × 1; 8-pin, X-cod.
 Optic Cover Glass
 Web server yes
 Output Push-Pull yes
 Adjustable parameters Output Push-pull
 Circuit NC
 NC/NO NO
