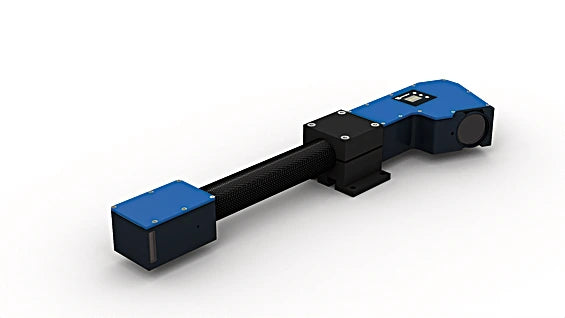

MLWL224 - Laser 2D/3D Profile Sensor with Open Interface

SKU: SKU: MLWL224 Download PDF

Select a Variant:

MLWL224 - Laser 2D/3D Profile Sensor with Open Interface

SET THE QTY:

Now $22,141.00 Web pricing policy

~~BEFORE $0.00~~ Now $22,141.00 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the innovative 2D/3D Profile Sensors, equipped with advanced laser line projection to accurately map the height profile of objects Utilizing an internal camera positioned at a triangulation angle, these sensors ensure precise measurements The weCat3D series boasts a flexible, user-friendly interface that allows for integration using the DLL program library or via the GigE Vision standard without needing an extra control unit.

For those who prefer a tailored solution, wenglor also provides proprietary software packages to facilitate your specific application needs.

Features and Benefits:

•Up to 12 million measuring points per second.

•Optimized profile quality thanks to HDR function.

•Precise measuring range resolution X (> 2000 measuring points).

Specifications:

Working range Z	600 ... 2000 mm
Measuring range Z	1400 mm
Measuring range X	440 ... 1300 mm
Linearity Deviation	350 µm
Resolution Z	39 ... 289 µm
Resolution X	251 ... 683 µm
Light Source	Laser (red)
Wavelength	660 nm
Service Life (T = +25 °C)	20000 h
Laser Class (EN 60825-1)	2
Ambient temperature	0 ... 45 °C
Storage temperature	-20 ... 70 °C
Max. Ambient Light	5000 Lux
EMC	DIN EN 61000-6-2; 61000-6-4
Shock resistance per DIN IEC 68-2-27	30 g / 11 ms
Vibration resistance per DIN IEC 60068-2-6	6 g (10...55 Hz)
Atmospheric humidity	5...95%, non-condensing
Supply Voltage	18 ... 30 V DC
Current Consumption (Ub = 24 V)	300 mA
Measuring Rate	175 ... 6000/s
Subsampling	350 ... 6000/s
Inputs/Outputs	4
Switching Output Voltage Drop	< 1.5 V
Switching Output / Switching Current	100 mA
Short Circuit Protection	yes
Reverse Polarity Protection	yes
Overload Protection	yes
Interface	Ethernet TCP/IP
Transmission rate	100/1000 Mbit/s
Protection Class	III
FDA Accession Number	1711074-000
Housing Material	Aluminum, anodised
Degree of Protection	IP67
UL Enclosure Type	1
Connection	M12 × 1; 12-pin
Type of Connection Ethernet	M12 × 1; 8-pin, X-cod.
Optic Cover	Glass
Web server	yes
Output Push-Pull	yes
Adjustable parameters Output	Push-pull NPN PNP Circuit NC NC/NO NO
