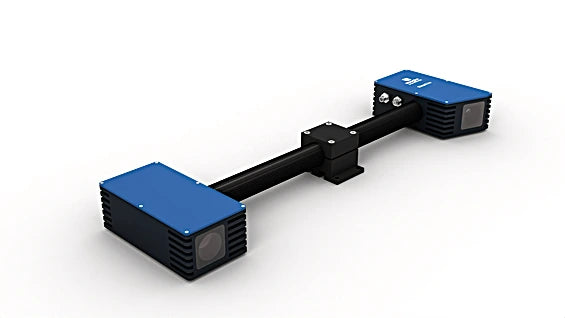

MLBS203 - IP67 3D Sensor for Large Measuring Volumes

MLBS203 - IP67 3D Sensor for Large Measuring Volumes

SKU: MLBS203 Download PDF

Variant:
  • MLBS203 - IP67 3D Sensor for Large Measuring Volumes
Now $59,844.00
BEFORE   $0.00 Now $59,844.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the 3D SensorShapeDrive MLBS series of 3D sensors, expertly crafted for applications requiring extensive measuring capacities This series includes six distinct models, each available in two performance tiers, showcasing impressive camera resolutions of 5 and 12 megapixels Built to withstand tough industrial environments, these sensors come in a robust IP67-rated housing They feature a 10 Gigabit Ethernet connection and offer three measurement ranges per performance level, ensuring exceptional versatility and rapid operation.

Features and Benefits:

    •10 Gbit/s interface for high speed data transfer.

    •12 MP resolution.

    •Large measuring volumes (up to 1300 × 920 × 800 mm).

    •Short recording time of up to 0.44 s.

Specifications:

 Working range Z 1,550 ... 2,350 mm
 Measuring range Z 800 mm
 Measuring range X 1,300 mm
 Measuring range Y 860 mm
 Resolution Z 70 µm
 Resolution X/Y 339 µm
 Camera Resolution 4,096 × 3,000 Pixel
 Light Source LED (blue)
 Wavelength 460 nm
 Service Life (T = +25 °C) 20,000 h
 Risk Group (EN 62471) 2
 Ambient temperature 0 ... 35 °C
 Storage temperature -5 ... 70 °C
 Max. Ambient Light 20,000 Lux
 EMC DIN EN 61000-6-2; 61000-6-4
 Supply Voltage 18 ... 30 V DC
 Max. Current Consumption (Ub = 24 V) 5 A
 Acquisition time 0.44 ... 2.15 s
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Interface Ethernet TCP/IP
 Protection Class III
 Housing Material Aluminium; Plastic
 Degree of Protection IP67
 Connection M12 × 1; 12-pin
 Type of Connection Ethernet M12 × 1; 8-pin, X-cod.
 Optic Cover Plastic
