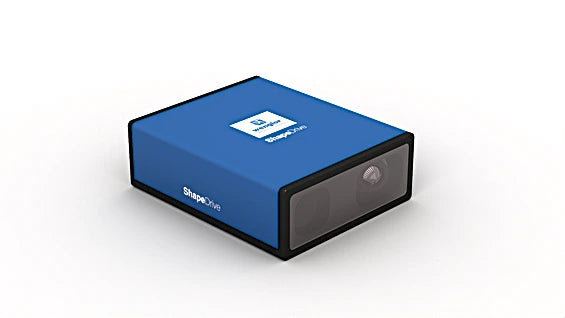

MLAS205 - High-Precision 3D Sensor with IP65 Protection and 10 Gb Ethernet

MLAS205 - High-Precision 3D Sensor with IP65 Protection and 10 Gb Ethernet

SKU: MLAS205 Download PDF

Variant:
  • MLAS205 - High-Precision 3D Sensor with IP65 Protection and 10 Gb Ethernet
Now $54,145.00
BEFORE   $0.00 Now $54,145.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the advanced 3D SensorShapeDrive MLAS series, renowned for its precision in measuring small volumes This collection includes ten models offered in two performance tiers, featuring camera resolutions of 5 and 12 megapixels Built to endure the rigors of industrial settings, these sensors come encased in a sturdy IP65 housing With a 10 Gigabit Ethernet connection and five measurement ranges for each performance class, the ShapeDrive sensors excel in versatility and speed, making them an excellent choice for a wide range of applications.

Features and Benefits:

    •10 Gbit/s interface for high speed data transfer.

    •12 MP resolution.

    •Short recording time of up to 0.44 s.

Specifications:

 Working range Z 420 ... 720 mm
 Measuring range Z 300 mm
 Measuring range X 360 mm
 Measuring range Y 240 mm
 Resolution Z 20 µm
 Resolution X/Y 96 µm
 Camera Resolution 4,096 × 3,000 Pixel
 Light Source LED (blue)
 Wavelength 460 nm
 Service Life (T = +25 °C) 20,000 h
 Risk Group (EN 62471) 2
 Ambient temperature 0 ... 35 °C
 Storage temperature -5 ... 70 °C
 Max. Ambient Light 5,000 Lux
 EMC DIN EN 61000-6-2; 61000-6-4
 Supply Voltage 18 ... 30 V DC
 Max. Current Consumption (Ub = 24 V) 3.5 A
 Acquisition time 0.44 ... 2.15 s
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Interface Ethernet TCP/IP
 Protection Class III
 Housing Material Aluminium; Plastic
 Degree of Protection IP65
 Connection M12 × 1; 12-pin
 Type of Connection Ethernet M12 × 1; 8-pin, X-cod.
 Optic Cover Plastic
 Web server yes
