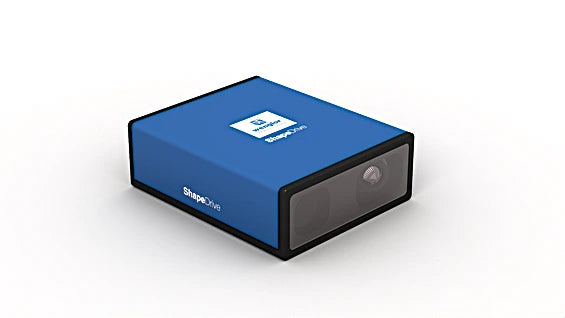

MLAS203 - High Precision 3D SensorShapeDrive with IP65 Housing

MLAS203 - High Precision 3D SensorShapeDrive with IP65 Housing

SKU: MLAS203 Download PDF

Variant:
  • MLAS203 - High Precision 3D SensorShapeDrive with IP65 Housing
Now $54,145.00
BEFORE   $0.00 Now $54,145.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the 3D SensorShapeDrive MLAS series, known for exceptional accuracy in measuring small volumes This lineup features ten distinct models, offered in two performance categories, with camera resolutions of either 5 or 12 megapixels Engineered to withstand industrial conditions, each ShapeDrive sensor comes housed in a robust IP65-rated casing Additionally, the integration of a 10 Gigabit Ethernet interface and five measuring ranges within each performance category enhances versatility and speed.

Please note, this product has been discontinued Discover the advanced successor by clicking here.

Features and Benefits:

    •10 Gbit/s interface for high speed data transfer.

    •12 MP resolution.

    •Short recording time of up to 0.44 s.

    •Rugged IP65 housing suitable for industrial environments.

Specifications:

 Working range Z 220 ... 320 mm
 Measuring range Z 100 mm
 Measuring range X 120 mm
 Measuring range Y 80 mm
 Resolution Z 9 µm
 Resolution X/Y 33 µm
 Camera Resolution 4,096 × 3,000 Pixel
 Light Source LED (blue)
 Wavelength 460 nm
 Service Life (T = +25 °C) 20,000 h
 Risk Group (EN 62471) 2
 Ambient temperature 0 ... 35 °C
 Storage temperature -5 ... 70 °C
 Max. Ambient Light 5,000 Lux
 EMC DIN EN 61000-6-2; 61000-6-4
 Supply Voltage 18 ... 30 V DC
 Max. Current Consumption (Ub = 24 V) 3.5 A
 Acquisition time 0.44 ... 2.15 s
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Interface Ethernet TCP/IP
 Protection Class III
 Housing Material Aluminium; Plastic
 Degree of Protection IP65
 Connection M12 × 1; 12-pin
 Type of Connection Ethernet M12 × 1; 8-pin, X-cod.
 Optic Cover Plastic
 Web server yes
