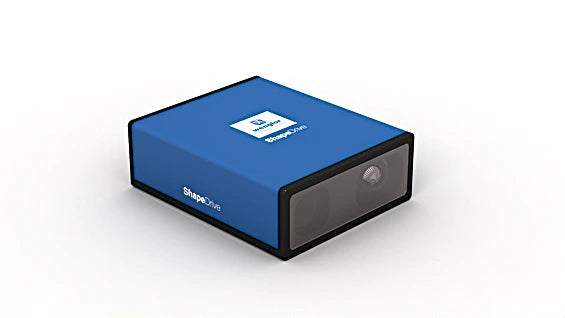

MLAS202 - High Precision 3D Sensor with IP65 Protection and 10 Gigabit Ethernet

MLAS202 - High Precision 3D Sensor with IP65 Protection and 10 Gigabit Ethernet

SKU: MLAS202 Download PDF

Variant:
  • MLAS202 - High Precision 3D Sensor with IP65 Protection and 10 Gigabit Ethernet
Now $54,145.00
BEFORE   $0.00 Now $54,145.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience precision with the 3D SensorShapeDrive MLAS 3D Sensors, designed for minimal measuring volumes This series includes ten models, offered in two distinct performance classes, featuring camera resolutions of 5 and 12 megapixels Built to withstand tough industrial settings, the robust IP65 housing ensures reliability Enhanced by a 10 Gigabit Ethernet interface, each performance class offers five different measuring ranges, showcasing remarkable versatility and speed for your measurement needs.

Features and Benefits:

    •10 Gbit/s interface for high speed data transfer.

    •12 MP resolution.

    •Short recording time of up to 0.44 s.

Specifications:

 Working range Z 255 ... 295 mm
 Measuring range Z 40 mm
 Measuring range X 60 mm
 Measuring range Y 40 mm
 Resolution Z 5 µm
 Resolution X/Y 16 µm
 Camera Resolution 4,096 × 3,000 Pixel
 Light Source LED (blue)
 Wavelength 460 nm
 Service Life (T = +25 °C) 20,000 h
 Risk Group (EN 62471) 2
 Ambient temperature 0 ... 35 °C
 Storage temperature -5 ... 70 °C
 Max. Ambient Light 5,000 Lux
 EMC DIN EN 61000-6-2; 61000-6-4
 Supply Voltage 18 ... 30 V DC
 Max. Current Consumption (Ub = 24 V) 3.5 A
 Acquisition time 0.44 ... 2.15 s
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Interface Ethernet TCP/IP
 Protection Class III
 Housing Material Aluminium; Plastic
 Degree of Protection IP65
 Connection M12 × 1; 12-pin
 Type of Connection Ethernet M12 × 1; 8-pin, X-cod.
 Optic Cover Plastic
 Web server yes
