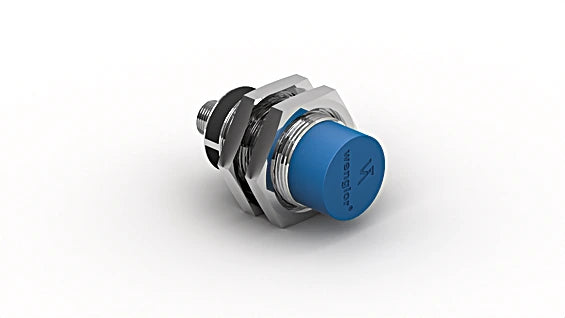

IX130RM65MG3 - Inductive Sensor 3-13mm Range with Analog Output

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Discover the precision of this Inductive Sensor featuring an Analog Output, designed to work effectively within a range of 3 to 13 mm, and offering a measuring distance of 8 mm With a total measuring range of 10 mm, it includes correction factors tailored for various materials like Stainless Steel V2A, CuZn, and Al This sensor is optimized for non-flush mounting, and its dimensions are specified as 30 mm in A and B, 36 mm in C, and 20 mm in D.

It comes with a standard target made of FE360, exhibiting a thickness of 1 mm, with dimensions of 39 × 39 mm Enjoy high precision with a linearity of less than 1% and an impressive resolution of 4 µm for reliable performance.

Features and Benefits:

•Supply voltage of 18 to 30 V DC.

•Current consumption less than 30 mA at Ub = 24 V.

•Cut-off frequency of 900 Hz.

•Temperature drift of 10 µm/K.

•Operating temperature range of -10 to 70 °C.

•Analog output providing 0 to 10 V.

•Load current voltage output less than 1 mA.

•Resistant to magnetic fields.

•Short circuit protection included.

•Reverse polarity protection.

•Protection class III.

•Full encapsulation for durability.

•Housing made of brass, nickel-plated.

•Sensing face made of stainless steel, V4A.

•Degree of protection IP67.

•Connection type M12 × 1; 4-pin.
