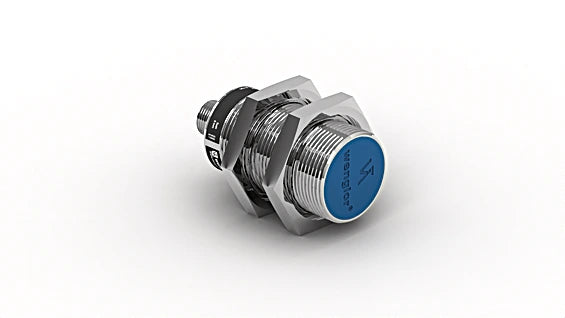

IX080CM65MG3 - Analog Inductive Sensor with 2-8mm Range and Flush Mount

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing an advanced inductive sensor with an analog output, engineered for a variety of uses This sensor operates effectively within a range of 2 to 8 mm, with an optimal measuring distance of 5 mm and a measurement capability of 6 mm It includes correction factors tailored for diverse materials like stainless steel, CuZn, and aluminum Designed for seamless integration through flush mounting, it uses a standard target of FE360 with a thickness of 1 mm.

With outstanding resolution and dependable performance, this sensor also features specifications for cut-off frequency and temperature drift, ensuring precise operation in multiple environments.

Features and Benefits:

•Working range of 2 to 8 mm.

•Measuring distance of 5 mm with a resolution of 2 µm.

•Electrical supply voltage between 18 to 30 V DC.

•Short circuit protection and reverse polarity protection.

•Degree of protection IP67 ensures durability in various environments.

Specifications:
