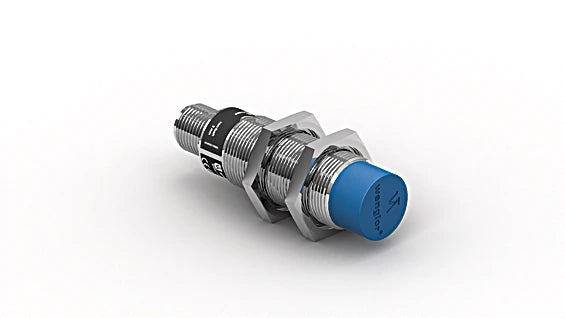

IW070RM65MG3 - Brass Inductive Sensor, 2-7mm Range, Analog Output IP67

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Presenting a dependable inductive sensor with an analog output tailored for precision applications It boasts a working range of 2 to 7 mm, with a specific measuring distance of 45 mm and an overall measuring range of 5 mm To accommodate various materials, it incorporates correction factors: 11 for stainless steel V2A, CuZn, and aluminum This sensor is designed for non-flush mounting, with dimensions of 18/18/21/15 mm, and comes with a standard target of FE360, characterized by a thickness of 1 mm and measuring 21 × 21 mm.

With linearity under 1% and a resolution of 2 µm, it ensures accurate measurements In terms of electrical specifications, it requires a supply voltage between 18 and 30 V DC, with a current draw of less than 30 mA at 24 V The sensor features a cut-off frequency of 900 Hz and a temperature drift of 83 µm/K in the range of -10 °C to 50 °C, increasing to 10 µm/K for temperatures from 50 °C to 70 °C Its operational temperature spans from -10 to 70 °C, providing an analog output of 0 to 10 V, with less than 1 mA output voltage load.

Moreover, this robust sensor is resistant to magnetic fields and is equipped with both short-circuit and reverse polarity protection, classified under protection class III Constructed from nickel-plated brass, it features a stainless steel V4A sensing face and is fully encapsulated, rated at IP67 for exceptional durability The sensor connects via an M12 × 1, 4-pin configuration, ensuring compatibility in a variety of applications.

Features and Benefits:

•Working range of 2 ... 7 mm.

•Measuring distance of 4.5 mm.

•Measuring range of 5 mm.

•Low linearity of < 1%.

•Resolution of 2 µm.

•Supply voltage of 18 ... 30 V DC.

•Current consumption of < 30 mA at Ub = 24 V.

•Cut-off frequency of 900 Hz.

•Temperature drift compensated.

•Temperature range of -10 ... 70 °C.

•Analog output of 0...10 V.

•Fully encapsulated with protection class IP67.

•Includes short circuit and reverse polarity protection.
