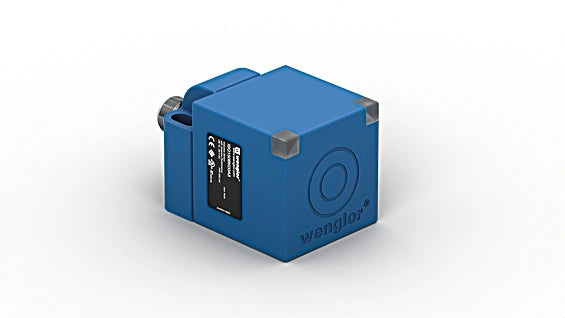

ISQ150BK00A3 - Selective Inductive Sensor for Ferrous & Non-Ferrous Metals

Description:

Introducing advanced inductive sensors that excel in differentiating between ferrous and non-ferrous metals, such as iron and steel versus aluminum, brass, copper, and stainless steel These sensors boast selective performance for reliable metal detection Orders typically ship within 10 days of receipt, ensuring a swift delivery to meet your needs.

Features and Benefits:

•For non-ferrous magnets.

•Switching Distance: 15 mm.

•Correction Factors: Fe360/Stainless Steel V2A/CuZn/Al 0/0,74/1/1.

•Mounting: Flush.

•Switching Hysteresis: < 10 %.

•Supply Voltage: 10 ... 30 V DC.

•Current Consumption (Ub = 24 V): < 10 mA.

•Switching Frequency: 300 Hz.

•Temperature Drift: < 10 %.

•Temperature Range: -25 ... 80 °C.

•Voltage Drop: < 1.5 V.

•Switching Output/Current: 200 mA.

•Residual Current: < 100 µA.

•Short Circuit Protection: yes.

•Reverse Polarity Protection: yes.

•Overload Protection: yes.

•Protection Class: III.

•Housing Material: Plastic, ABS.

•Sensing face: Plastic, PBT.

•Full Encapsulation: yes.

•Degree of Protection: IP67.

•Connection: M12 × 1; 4-pin.

•Weight: 121 g.

•MTTFd (EN ISO 13849-1): 1,886.72 a.

•Stock Type: X.

•Output PNP NC, PNP NO: yes.

•Adjustable parameters: Circuit NC, NC+NO, NO.
