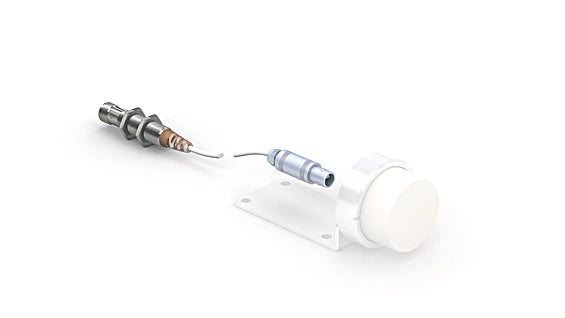

INTT329 - High-Temp Inductive Sensor Module with Tool-Free Head Replacement

INTT329 - High-Temp Inductive Sensor Module with Tool-Free Head Replacement

SKU: INTT329   Download PDF

Select a Variant:
  • INTT329 - High-Temp Inductive Sensor Module with Tool-Free Head Replacement
Qty:
Now $216.00   Web pricing policy
BEFORE   $0.00 Now $216.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing our high-performance inductive high-temperature sensors, engineered specifically for use in demanding hot environments This system includes a dedicated analysis module paired with a flexible cable and a separate sensor head Designed to deliver extended switching distances and durability, these sensors ensure exceptional reliability in high-temperature conditions The sensor heads are designed for easy replacement without the need for tools, and you can choose from a variety of standard cable lengths featuring the integrated analysis module, each sold separately.

Leveraging the innovative weproTec technology, these sensors can be positioned in close proximity to one another for enhanced functionality Plus, with IO-Link capabilities, you can easily adjust sensor settings, including switching distances and output functions, for optimal performance.

Features and Benefits:

    •Three configurable switching distances: 30/35/40 mm.

    •Easy to replace sensors with data storage feature.

    •Cable with analysis module integrated into M12 sensor connector.

    •Cable lengths of 5 to 20 m.

    •Compatible with INTT320 sensor head.

Specifications:

 Switching Distance: 40 mm
 Supply Voltage: 10 ... 30 V DC
 Supply Voltage with IO-Link: 18 ... 30 V DC
 Current Consumption (Ub = 24 V): < 15 mA
 Switching Frequency: 50 Hz
 Temperature Drift: < 10 %
 Temperature range of the plug: 0 ... 70 °C
 Number of Switching Outputs: 2
 Switching Output Voltage Drop: < 1 V
 Switching Output / Switching Current: 100 mA
 Residual Current Switching Output: < 100 µA
 Short Circuit Protection: yes
 Reverse Polarity Protection: yes
 Overload Protection: yes
 Interface: IO-Link V1.1
 Protection Class: III
 Housing Material: Aluminum, anodised
 Sensing face: Plastic, PEEK
 Analysis module material: Stainless Steel V2A, Plastic, PEEK, PTFE, Brass, chrome-plated
 Degree of protection, sensor head: IP50
 Degree of protection of the plug: IP50
 Connection: M12 × 1; 4-pin
 Cable Length: 15 m
 Outer diameter cable: 3.4 mm
 Bending Radius: > 17 mm
 PWIS-free: yes
 MTTFd (EN ISO 13849-1): 3,706.54 a
 Function Error Indicator: yes
 Programmable switching distance: 30/35/40 mm
 Output IO-Link: yes
 Error Output: yes
 PNP NO: yes
 Adjustable parameters Output: Push-pull
 NPN PNP Circuit: NC NC/NO NO
