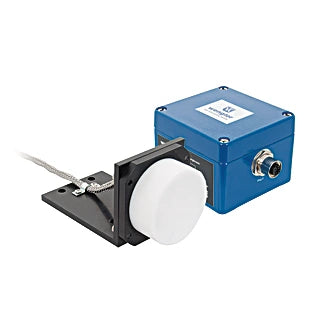

INTT111 - High-Temperature Inductive Sensor with Interchangeable Heads

INTT111 - High-Temperature Inductive Sensor with Interchangeable Heads

SKU: INTT111   Download PDF

Select a Variant:
  • INTT111 - High-Temperature Inductive Sensor with Interchangeable Heads
Qty:
Now $1,391.00   Web pricing policy
BEFORE   $0.00 Now $1,391.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing a robust inductive sensor that merges a sensor head with an analytical module, expertly crafted for challenging high-temperature work scenarios This sensor guarantees a long service life even in extreme heat, coupled with impressive switching distances that bolster system reliability It is designed with interchangeable heads and offers a variety of standard cable lengths available for separate purchase.

To prevent unexpected downtimes, a built-in maintenance feature alerts you when it's time to replace the sensor before its service life concludes Moreover, it meets the DESINA diagnostics standards for added quality assurance.

Features and Benefits:

    •Increased system availability thanks to maintenance output.

    •Increased switching distance of up to 40 mm.

    •Long service life of up to 100,000 hours.

    •Quickly interchangeable sensor head.

Specifications:

 Switching Distance 40 mm
 Correction Factors Stainless Steel V2A/CuZn/Al 0.81/0.56/0.52
 Mounting A/B/C/D in mm 70/120/80/25
 Switching Hysteresis < 10 %
 Supply Voltage 10 ... 30 V DC
 Current Consumption (Ub = 24 V) < 40 mA
 Switching Frequency 60 Hz
 Temperature Drift < 10 %
 Sensor head temperature range -10 ... 250 °C
 Temperature Range, Plug on Sensor Head 0 ... 50 °C
 Analysis module temperature range 0 ... 50 °C
 Number of Switching Outputs 2
 Switching Output Voltage Drop < 2.5 V
 Switching Output / Switching Current 100 mA
 Residual Current Switching Output < 10 mA
 Short Circuit Protection yes
 Protection Class III
 Service Life (T = +200 °C) 100,000 h
 Service Life (T = +250 °C) 60,000 h
 Sensing face PTFE
 Sensor head material Aluminum, anodised
 Analysis module material Aluminum, powder-coated
 Degree of protection, sensor head IP60
 Degree of protection, analysis module IP67
 Connection M12 × 1; 4-pin
 Cable Length 20 m
 Cable Jacket Material Stainless steel, V2A (1.4301 / 304)
 Outer diameter cable 5.3 mm
 PWIS-free yes
 MTTFd (EN ISO 13849-1) 1,155.13 a
 Output PNP NC, PNP NO yes
 Maintenance output yes
