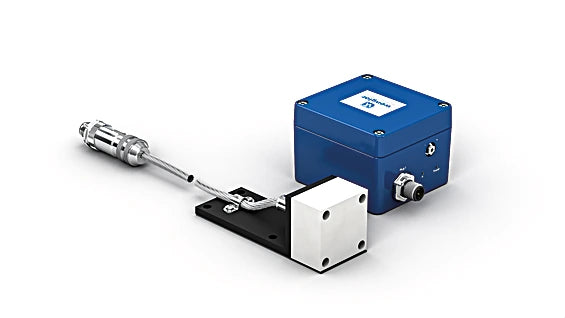

INTT009 - High-Temperature Inductive Sensor with Maintenance Alert

SKU: SKU: INTT009 Download PDF

Select a Variant:

INTT009 - High-Temperature Inductive Sensor with Maintenance Alert

SET THE QTY:

Now $1,049.00 Web pricing policy

~~BEFORE $0.00~~ Now $1,049.00 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Experience reliable performance with our advanced sensors, specifically designed for extreme heat environments Each unit includes a sensor head and an analysis module, ensuring exceptional service life even in challenging conditions With generous switching distances, these sensors guarantee optimal system reliability Easily replaceable sensor heads are available in multiple standard cable lengths, allowing for quick swaps.

A smart maintenance feature prevents unexpected downtime by signaling when the sensor is due for replacement during scheduled checks—ensuring it will be replaced before its lifespan ends, thanks to our innovative patented technology (DE202011001009) Additionally, these sensors meet the DESINA diagnostics requirements, providing you with comprehensive monitoring and reliability.

Features and Benefits:

•Increased system availability thanks to maintenance output.

•Long service life of up to 100,000 hours.

•Quickly interchangeable sensor head.

Specifications:

Switching Distance:	25 mm
Supply Voltage:	10 ... 30 V DC
Current Consumption (Ub = 24 V):	< 40 mA
Switching Frequency:	60 Hz
Sensor head temperature range:	-10 ... 250 °C
Temperature Range, Plug on Sensor Head:	0 ... 50 °C
Analysis module temperature range:	0 ... 50 °C
Number of Switching Outputs:	2
Switching Output Voltage Drop:	< 2.5 V
Switching Output / Switching Current:	100 mA
Residual Current Switching Output:	< 10 mA
Short Circuit Protection:	yes
Protection Class:	III
Service Life (T = +200 °C):	100,000 h
Service Life (T = +250 °C):	60,000 h
Sensing face:	PTFE
Sensor head material:	Aluminum, anodised
Analysis module material:	Aluminum, powder-coated
Degree of protection, sensor head:	IP60
Degree of protection, analysis module:	IP67
Connection:	M12 × 1; 4-pin
Cable Length:	15 m
Cable Jacket Material:	Stainless steel, V2A (1.4301 / 304)
Outer diameter cable:	5.3 mm
PWIS-free:	yes
MTTFd (EN ISO 13849-1):	1,333.65 a
Output PNP NC, PNP NO:	yes
Maintenance output:	yes
