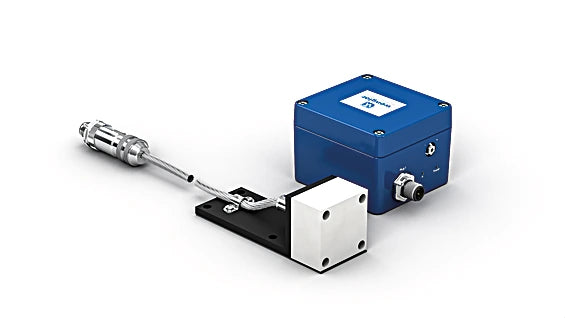

INTT007 - High-Performance Inductive Sensor for Extreme Temperatures

INTT007 - High-Performance Inductive Sensor for Extreme Temperatures

SKU: INTT007   Download PDF

Select a Variant:
  • INTT007 - High-Performance Inductive Sensor for Extreme Temperatures
Qty:
Now $993.00   Web pricing policy
BEFORE   $0.00 Now $993.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Experience unparalleled performance with our advanced sensors, expertly engineered for challenging high-heat environments Each system includes a sensor head coupled with an analysis module, designed to withstand extreme conditions while ensuring exceptional longevity Our sensors feature large switching distances to guarantee optimal system functionality For added convenience, you can easily swap out sensor heads, with a variety of standard cable lengths offered as separate replacement options.

The built-in maintenance feature helps to avoid unexpected downtimes, while our innovative patented technology (DE202011001009) proactively alerts you when it's time to replace the sensor during your next scheduled maintenance, ensuring it remains within its service life Additionally, these sensors are compliant with the DESINA diagnostics function, enhancing their reliability and efficiency.

Features and Benefits:

    •Increased system availability thanks to maintenance output.

    •Long service life of up to 100,000 hours.

    •Quickly interchangeable sensor head.

Specifications:

 Switching Distance 25 mm
 Correction Factors Stainless Steel V2A/CuZn/Al 0.81/0.56/0.52
 Mounting Non-flush
 Mounting A/B/C/D in mm 50/90/50/25
 Switching Hysteresis < 10 %
 Supply Voltage 10 ... 30 V DC
 Current Consumption (Ub = 24 V) < 40 mA
 Switching Frequency 60 Hz
 Temperature Drift < 10 %
 Sensor head temperature range -10 ... 250 °C
 Temperature Range, Plug on Sensor Head 0 ... 50 °C
 Analysis module temperature range 0 ... 50 °C
 Number of Switching Outputs 2
 Switching Output Voltage Drop < 2.5 V
 Switching Output / Switching Current 100 mA
 Residual Current Switching Output < 10 mA
 Short Circuit Protection yes
 Protection Class III
 Service Life (T = +200 °C) 100,000 h
 Service Life (T = +250 °C) 60,000 h
 Sensing face PTFE
 Sensor head material Aluminum, anodized
 Analysis module material Aluminum, powder-coated
 Degree of protection, sensor head IP60
 Degree of protection, analysis module IP67
 Connection M12 × 1; 4-pin
 Cable Length 10 m
 Cable Jacket Material Stainless steel, V2A (1.4301 / 304)
 Outer diameter cable 5.3 mm
 PWIS-free yes
 MTTFd (EN ISO 13849-1) 1,333.65 a
 Output PNP NC, PNP NO yes
 Maintenance output yes
