INRT011 - Inductive Sensor for High Temperatures (-60 to 450°C)

INRT011 - Inductive Sensor for High Temperatures (-60 to 450°C)

SKU: INRT011 Download PDF

Variant:
  • INRT011 - Inductive Sensor for High Temperatures (-60 to 450°C)
Now $2,317.00
BEFORE   $0.00 Now $2,317.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

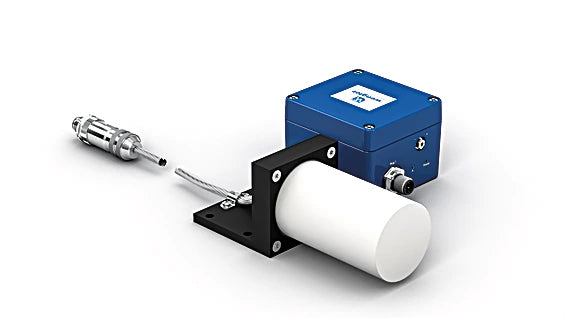

Experience top-tier performance with these sensors, designed specifically for extremely hot work conditions Featuring a sensor head paired with an analysis module, they ensure remarkable longevity in high-temperature environments while providing substantial switching distances for optimal system reliability For convenience, interchangeable sensor heads are offered along with a variety of standard cable lengths as replacement options.

Switching distances can be easily modified with a built-in potentiometer, accommodating temperatures from -60 to 450° C.

Features and Benefits:

    •Large temperature range from -60 to 450° C.

    •Long service life of up to 100,000 hours.

    •Quickly interchangeable sensor head.

Specifications:

 Switching Distance 25 mm
 Correction Factors Stainless Steel V2A/CuZn/Al 1.27/1.29/1.33
 Mounting Non-flush Mounting A/B/C/D in mm 95/200/40/85
 Switching Hysteresis < 10 %
 Supply Voltage 18 ... 30 V DC
 Current Consumption (Ub = 24 V) < 70 mA
 Switching Frequency 200 Hz
 Sensor head temperature range -60 ... 450 °C
 Analysis module temperature range 0 ... 50 °C
 Number of Switching Outputs 2
 Switching Output Voltage Drop < 3.5 V
 Switching Output / Switching Current 50 mA
 Residual Current Switching Output < 10 mA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Protection Class III
 Service Life 100,000 h
 Sensing face Ceramic
 Sensor head material Aluminum, anodised
 Analysis module material Aluminum, powder-coated
 Degree of protection, sensor head IP60
 Degree of protection, analysis module IP67
 Connection M12 × 1; 4-pin
 Cable Length 20 m
 Cable Jacket Material Stainless steel, V2A (1.4301 / 304)
 Outer diameter cable 6.6 mm
 PWIS-free yes
 Output PNP NC, PNP NO yes
