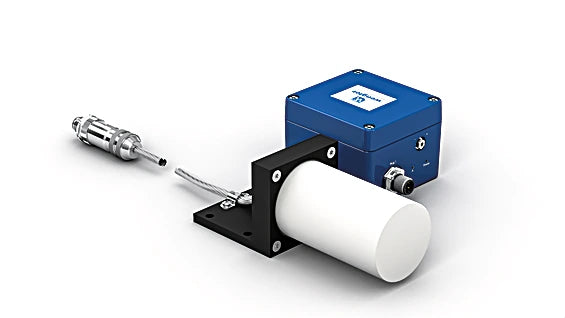

INRT007 - Extreme Temp Inductive Sensor, -60 to 450°C, Adjustable Distance

INRT007 - Extreme Temp Inductive Sensor, -60 to 450°C, Adjustable Distance

SKU: INRT007   Download PDF

Select a Variant:
  • INRT007 - Extreme Temp Inductive Sensor, -60 to 450°C, Adjustable Distance
Qty:
Now $1,968.00   Web pricing policy
BEFORE   $0.00 Now $1,968.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Experience reliability in extreme conditions with these sensors, designed specifically for high-temperature work environments Featuring a sensor head paired with an analysis module, they ensure exceptional service life and robust performance With generous switching distances, these sensors guarantee optimal system functionality For added convenience, interchangeable sensor heads are available in a variety of standard cable lengths for easy replacement.

Furthermore, the switching distance can be effortlessly adjusted using a potentiometer, accommodating a wide temperature range from -60 to 450°C.

Features and Benefits:

    •Large temperature range from -60 to 450° C.

    •Long service life of up to 100,000 hours.

    •Quickly interchangeable sensor head.

Specifications:

 Switching Distance 25 mm
 Correction Factors Stainless Steel V2A/CuZn/Al 1.27/1.29/1.33
 Mounting Non-flush 95/200/40/85 mm
 Switching Hysteresis < 10 %
 Supply Voltage 18 ... 30 V DC
 Current Consumption (Ub = 24 V) < 70 mA
 Switching Frequency 200 Hz
 Sensor head temperature range -60 ... 450 °C
 Analysis module temperature range 0 ... 50 °C
 Number of Switching Outputs 2
 Switching Output Voltage Drop < 3.5 V
 Switching Output / Switching Current 50 mA
 Residual Current Switching Output < 10 mA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Protection Class III
 Service Life 100,000 h
 Sensing face Ceramic
 Sensor head material Aluminum, anodised
 Analysis module material Aluminum, powder-coated
 Degree of protection, sensor head IP60
 Degree of protection, analysis module IP67
 Connection M12 × 1; 4-pin
 Cable Length 10 m
 Cable Jacket Material Stainless steel, V2A (1.4301 / 304)
 Outer diameter cable 6.6 mm
 PWIS-free yes
 Output PNP NC, PNP NO yes
