Description:

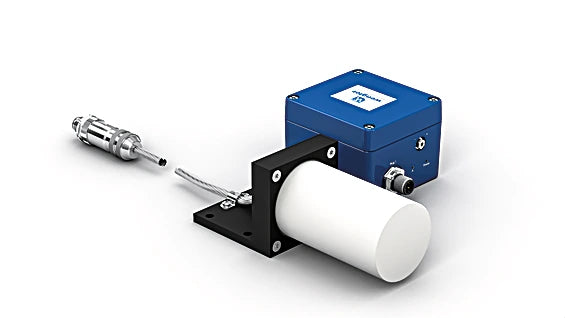

Introducing our advanced sensors, engineered for optimal performance in extreme heat Comprising a sensor head and an analysis module, these devices boast an impressive longevity in high-temperature settings along with extensive switching distances to guarantee superior system reliability The sensor heads are designed for easy interchangeability and are available with a range of standard cable lengths as optional replacement components.

You can swiftly adjust the switching distance using a potentiometer, accommodating a wide temperature variation from -60 to 450°C.

Features and Benefits:

•Large temperature range from -60 to 450° C.

•Long service life of up to 100,000 hours.

•Quickly interchangeable sensor head.

Specifications:

Switching Distance	25 mm
Correction Factors	Stainless Steel V2A/CuZn/Al 1.27/1.29/1.33
Mounting	Non-flush
Mounting Dimensions (A/B/C/D) in mm	95/200/40/85
Switching Hysteresis	< 10 %
Electrical Data	{'Supply Voltage': '18 ... 30 V DC', 'Current Consumption (Ub = 24 V)': '< 70 mA', 'Switching Frequency': '200 Hz', 'Sensor head temperature range': '-60 ... 450 °C', 'Analysis module temperature range': '0 ... 50 °C', 'Number of Switching Outputs': '2', 'Switching Output Voltage Drop': '< 3.5 V', 'Switching Output / Switching Current': '50 mA', 'Residual Current Switching Output': '< 10 mA', 'Short Circuit Protection': 'yes', 'Reverse Polarity Protection': 'yes', 'Overload Protection': 'yes', 'Protection Class': 'III', 'Service Life': '100,000 h'}
Mechanical Data	{'Sensing face': 'Ceramic', 'Sensor head material': 'Aluminum, anodised', 'Analysis module material': 'Aluminum, powder-coated', 'Degree of protection, sensor head': 'IP60', 'Degree of protection, analysis module': 'IP67', 'Connection': 'M12 × 1; 4-pin', 'Cable Length': '5 m', 'Cable Jacket Material': 'Stainless steel, V2A (1.4301 / 304)', 'Outer diameter cable': '6.6 mm', 'PWIS-free': 'yes', 'Output PNP NC, PNP NO': 'yes'}
